Centrifugal Rainwater Harvesting Filter

Centrifugal Rainwater Harvesting Filter

Features

    • No energy required, Self-keep clean

    • Easy to install, no need of consumptive material

    • High efficiency

    • Suitable for installation in buildings, factories, schools, hospitals and public buildings

    • Equipped with Anti Rainstorm Device to endure extreme climate

Features

    • No energy required, Self-keep clean

    • Easy to install, no need of consumptive material

    • High efficiency

    • Suitable for installation in buildings, factories, schools, hospitals and public buildings

    • Equipped with Anti Rainstorm Device to endure extreme climate

Centrifugal Rainwater Harvesting Filter

Type 5108 Centrifugal Rainwater Harvesting Filter.

When rainwater falls into rainwater harvesting filter, it is designed to create centrifugal force while spinning rainwater through stainless filter, cleaned rainwater will then be flushed out. Over 95% of cleaned rainwater will then be flushed out and could be collected effectively. Cleaned rainwater is available for flushing toilets, washing cars, watering plants, cooling water, firefighting or any other purpose without direct contact with human body. The remaining with leaves, branches, stones, garbage and other impurities will be filtered out to the sewage outlet and be discharged.



Specification





Size D ±10 A (DN) B (DN) C (DN) H1 ±20 H2 ±20 H3 ±20 Roof Areas (m2)
4” 325 100 100 100 715 340 75 200
6” 325 150 100 150 740 370 100 500
8” 590 200 150 200 1055 555 115 1000
10” 710 250 200 250 1320 720 120 2000
12” 830 300 250 300 1520 870 140 3000



Material:SUS304

Filter mesh size:40 mesh (0.335 mm)

Temperature Range:0℃~100℃






Notice:

※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.

※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.






Application diagram

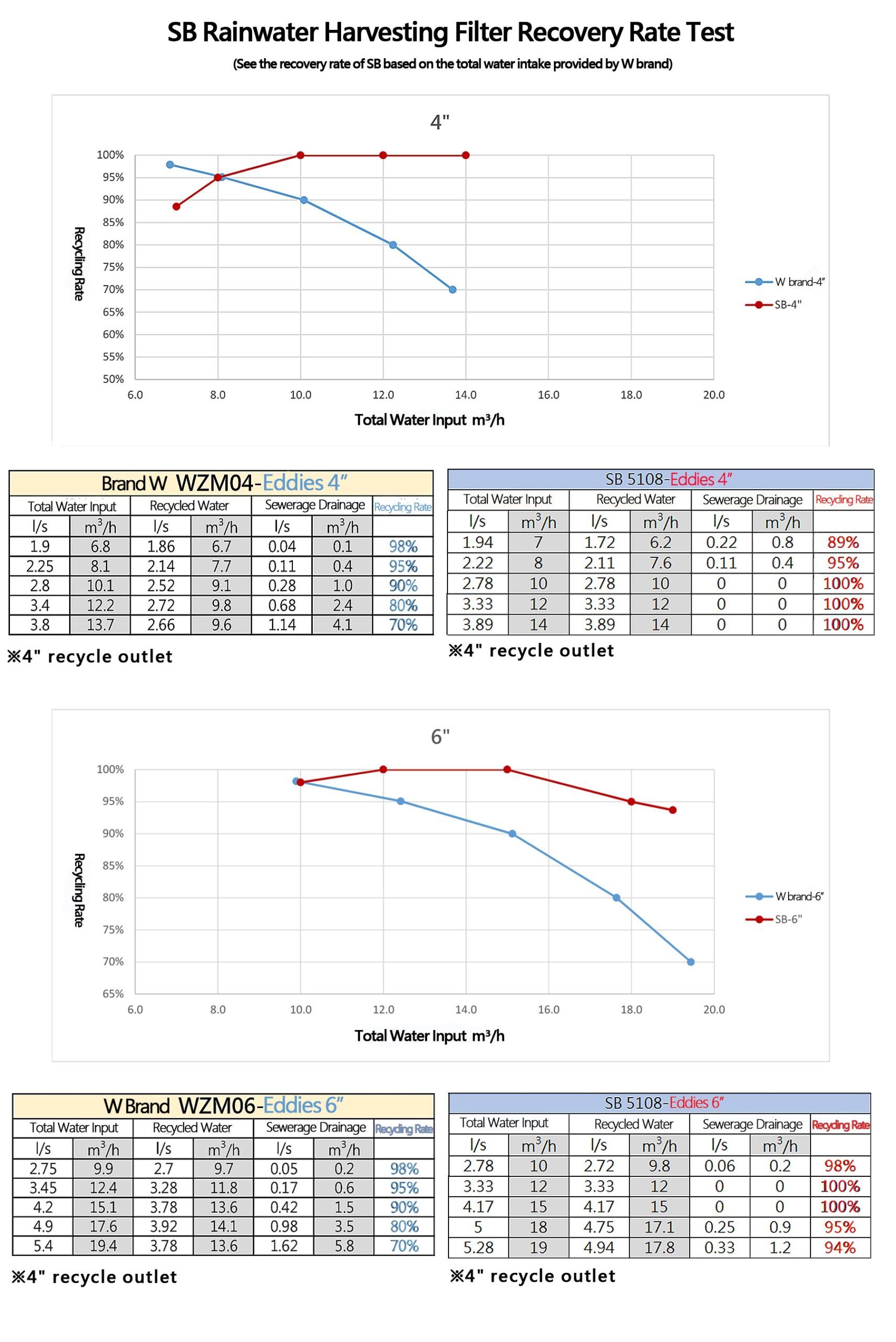

Recovery Test










Downloads

Catalog Of Centrifugal Rainwater Harvesting Filter

Installation/Operation/Maintenance Manual Of Centrifugal Rainwater Harvesting Filter
