Type 41 Pressure Relief, Sustaining, Back Valve

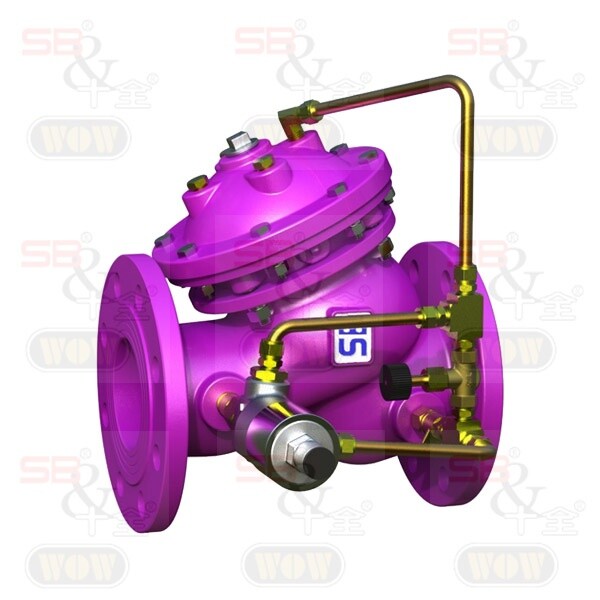

Model 41-03 pressure relief, sustaining, back pressure valve can maintain upstream pipe pressure. It is applied for pressure relief, sustaining, and back impact problems.During operation, through pilot to sense the valve inlet pressure and control the open/close of the valve. When the input pressure is over the preset value, valve will quickly open and maintain the pressure in the pipe.After pressure relief, the valve will close slowly to prevent impact happening.
If a check feature is added, and a pressure reversal occurs, the downstream pressure is admitted in the main valve cover chamber closing the valve to prevent return flow.

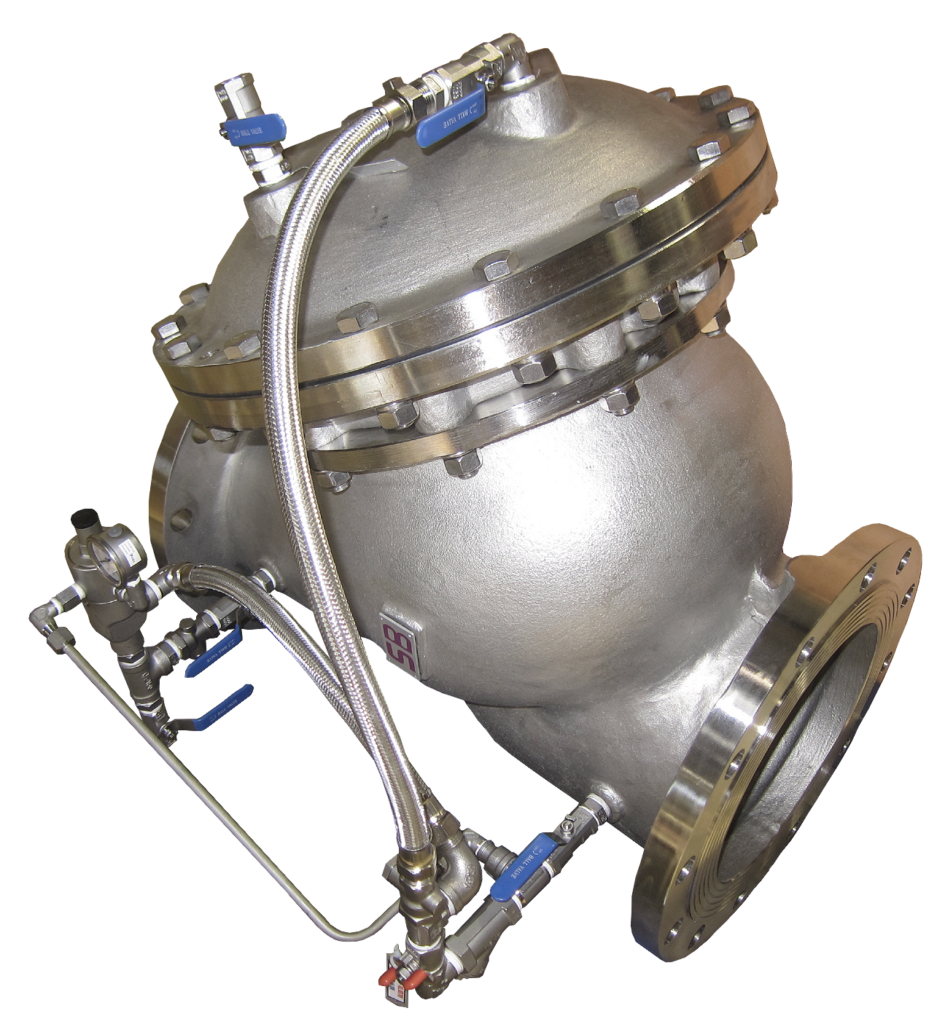

  • Type 41 Pressure Back Valve 10″*150LB SUS304


Schematic Diagram





Accessories

   No. Parts Name
    1
Strainer
    2
Close Speed Control
    3
Check Valve(Optional)
    4
Ball Valve
    5
Ball Valve
    6
Pilot of pressure relief, sustaining, back
    7
Check Valve(Optional)
    8
Ball Valve

Dimension


Valve size
50牙口
50
65
80
100
125
L (mm)
184
205
229
250
320
370
H (mm)
123 155 182 186 242 276
Weight (kg)
6
11
13
22
37
46

Valve size
150
200
250
300
350
400
L (mm)
415
500
605
725
733
990
H (mm)
308 418 488 572 598 815
Weight (kg)
75
125
217
370
380
846

Notice:
※When installing the valve, strongly request to leave enough space for maintenance. It is necessary to install the filter at the front section of the valve to avoid foreign materials to block the valve and affect the operation of the valve.

※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.

※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.

Specification

Size:DN50~DN400 to flange , DN50 to Thread

Flange:10K、16K、PN16、150LB

Temp. range:0℃~100℃,water

※Any size over DN450 can be made to order.

Material


Body:Ductile Iron / Stainless steel

Accessory:Brass / Stainless steel

Fastener & Spring:Carbon steel / Stainless steel

Diaphragm:NBR / EPDM

Stem:Stainless Steel

Pilot Specification


Pressure adjustment range:0.1~4 bar 、3~9 bar、7~16 bar

Temp. range:0℃~100℃,water

Material:Brass / Stainless steel

When Ordering, Please Specify


1、Valve model number

2、Valve size

3、Pressure range

4、Connection type

5、Other optional parts

6、Working pressure

Installation

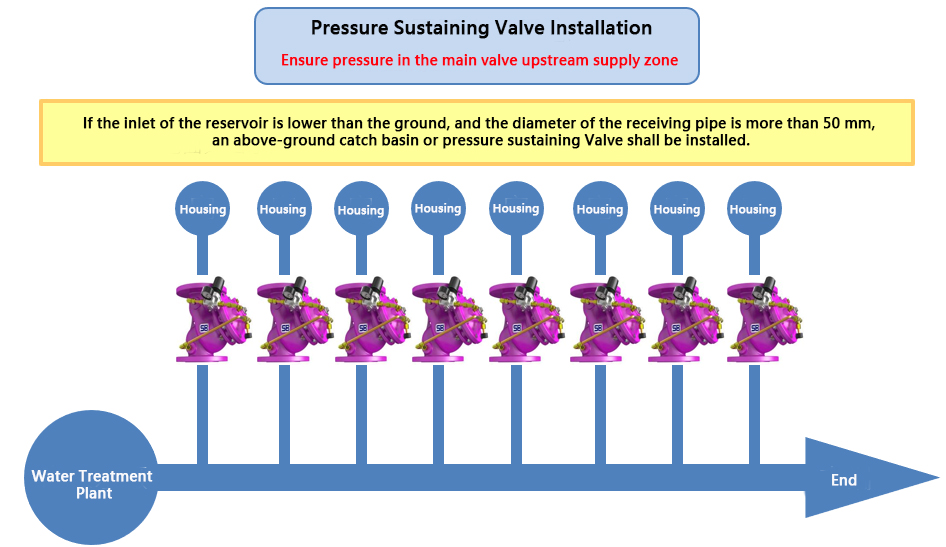

  • Pressure Sustaining Valve

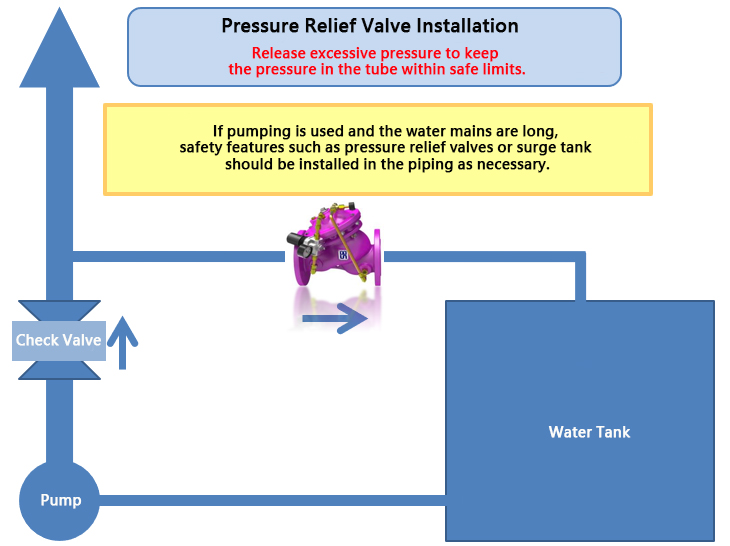

  • Pressure Relief Valve



Typical Application




●Pressure Relief Valve

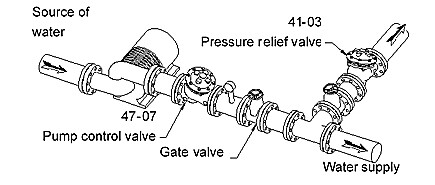

To prevent high pressure impact happened at the time pump shut down, the quick open and slow close model 41-03 valve can release the unexpected high pressure to protect system piping and avoid water hammer problem.







●Sustaining Valve

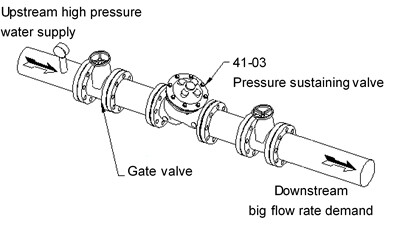

41-03 can be used as sustaining valve by installing it between upstream high pressure water supply and downstream big flow rate demand. It can maintain upstream supply pressure to avoid over flow rate problem which will lead upstream supply pressure loss.
