606 Water Hammer Arrester
Due to the suddenly raising or reducing velocity of the liquid flow inside the piping, it will cause the obvious, repeated and quick change of liquid pressure, and then will occur the phenomenon of water hammer effect, which is usually caused by the valve, the faucet or the pump suddenly shut down or stopped. Water hammer effect will cause the repeated changes of over pressure and negative pressure inside the pipes, that will form the surges of hugely destructive power, then it will cause the vibration, noises and even the damage of the piping and equipment. Water Hammer Arrester is installed at the inlet of faucet and solenoid control valve, and the outlet of the check valve, and both ends of pressure reducing valve, to avoid the happenings of water hammer effect.
Material of Construction
|
No. |
Parts |
Material |
|
1 |
Upper body |
Stainless Steel |
|
2 |
Spring |
Stainless Steel |
|
3 |
Damper piston |
POM |
|
4 |
Lower body |
Stainless Steel |
|
Size |
D (mm) |
H(mm) |
W(mm) |
L(mm) |
Capacity cc |
Weight kg |
|
DN15 |
45.5 |
106 |
54 |
38 |
65 |
0.59 |
|
DN20 |
45.5 |
108 |
54 |
38 |
65 |
0.64 |
|
DN25 |
45.5 |
110 |
54 |
38 |
65 |
0.72 |
Applied liquid：Water
Installation Connector：PT Male
Max. Working Pressure：10 bar
Working Temperature Range：0~90 ℃
Note：
※King-Tech reserves the right to make any revisions on the valve model and size without prior notification. When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.
Operation Principle
Water Hammer Arrester is cylinder-shaped. The Pressure Reducing Piston inside is with double sealing. The O-Ring divided the space into two areas. There are air and spring in the close area, where is the buffer area for compression and vibration absorbing, and the other open area is connected with the piping liquid pressure. When the water hammer effect happens, it will cause the vibration surges, which will be absorbed and compensated by the air and spring in the close area.
Application

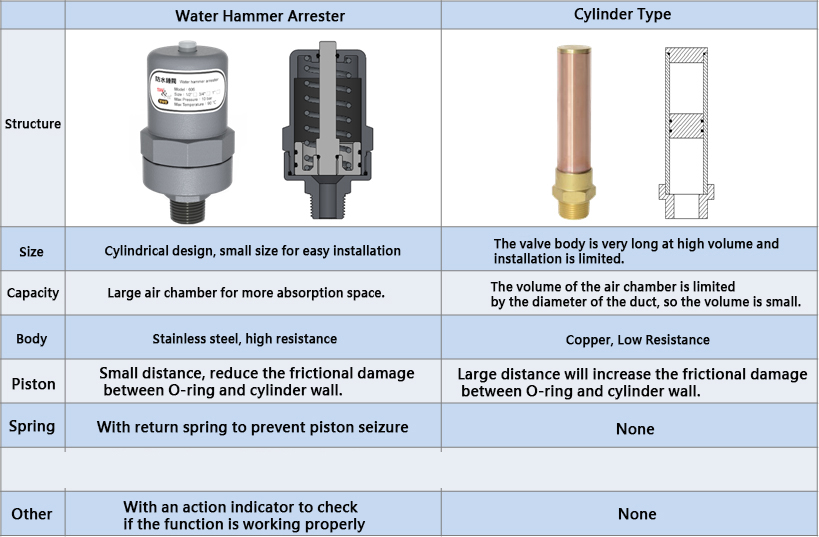

Compare
