Features
One compact unit construction, easy to install on job site.
Stainless steel material, no maintenance and repair required, forever use.
Unique internal full flow smoothing & calming cage design.
Excellent performance to reduce the water flow surge.
Calming feed water, no waves.
Features
One compact unit construction, easy to install on job site.
Stainless steel material, no maintenance and repair required, forever use.
Unique internal full flow smoothing & calming cage design.
Excellent performance to reduce the water flow surge.
Calming feed water, no waves.

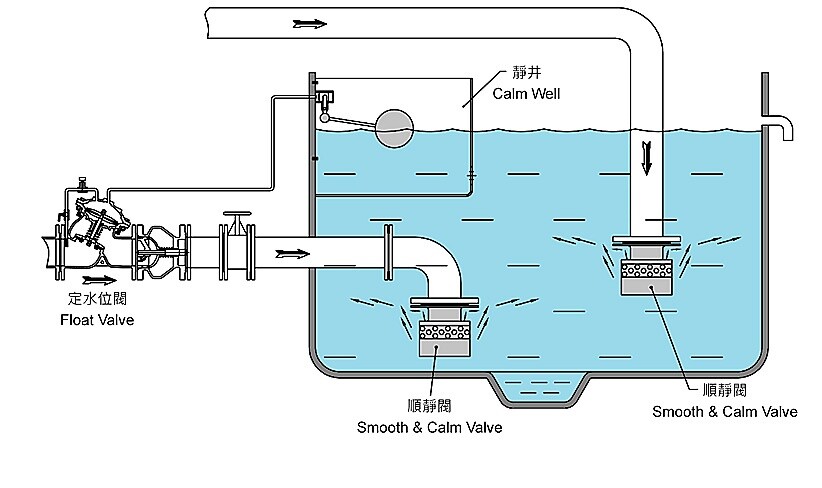

93 Smooth & Calm Valve is the valve installed at the end of the feed water system of the pond or the big storage tank, mainly to prevent the floating ball fluctuated up and down that is caused by the flow turbulence and big waves on the water surface during the feed water. As the big waves on the water surface would cause the fluctuation of the floating ball, it will make the Valve open and close frequently and then will cause the water hammer effect. Smooth & Calm Valve can protect the whole feed water system to work stably for a long life time, and can ensure the water quality that won’t be polluted by the tumbling sediment.

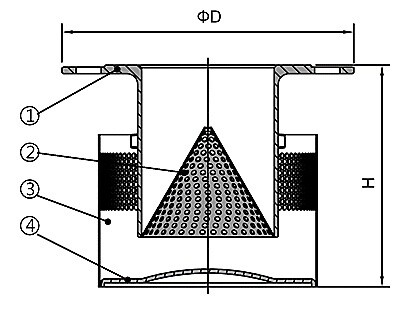

结构材质
|
No. |
Parts Name |
Material |
|
1 |
Flange |
Stainless Steel |
|
2 |
Smoothing & Calming Cage |
Stainless Steel |
|
3 |
Slow Flow Hood |
Stainless Steel |
|
4 |
Bottom Board |
Stainless Steel |
外形尺寸
|
DN(mm) |
D |
H |
|
50 |
155 |
155 |
|
65 |
175 |
155 |
|
80 |
185 |
170 |
|
100 |
210 |
170 |
|
125 |
250 |
210 |
|
150 |
280 |
210 |
|
200 |
330 |
350 |
Note：
※When installing the valve, strongly request to leave enough space for maintenance.
※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.
※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.
Fluid：Clean Water
Flange： 10K、PN16、150LB
Working Temp.：常溫Constant Temp.
※If need the size over DN250, please contact the manufacturer.
