Multi-Function Valve

Features

- Multi-function valve has been designed to give you more than one features with one body. It can service as a silent check valve and shutoff valve, it also can be used as flow regulating with two metering connections as standard.
- The unique V-Port design, gives the valve very good adjustment feature.
- Horizontal or vertical installation. Removable Cover design, easy to maintain inline.
- Multi-function Valve combines a butterfly valve, silent check valve and metering valve. Using Multi-function may save your installation time, space, and your hardware cost and labor.

Features

- Multi-function valve has been designed to give you more than one features with one body. It can service as a silent check valve and shutoff valve, it also can be used as flow regulating with two metering connections as standard.
- The unique V-Port design, gives the valve very good adjustment feature.
- Horizontal or vertical installation. Removable Cover design, easy to maintain inline.
- Multi-function Valve combines a butterfly valve, silent check valve and metering valve. Using Multi-function may save your installation time, space, and your hardware cost and labor.

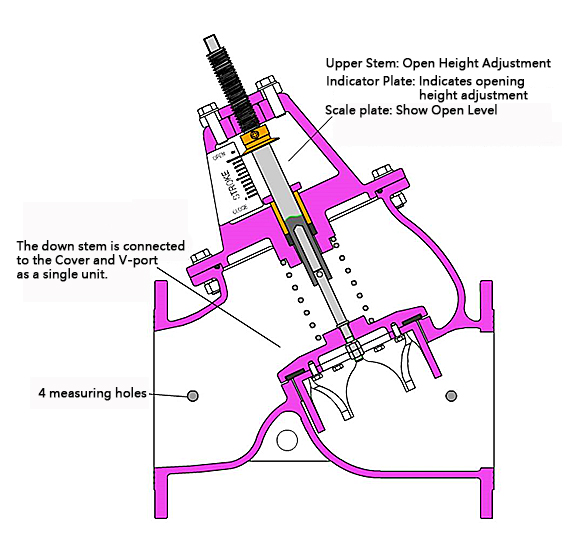

Multi-Function Valve

52 Multi-Function Valve

Functional equivalents: 1. butterfly valve、2. silent check valve、3. metering valve、4. Regulate water volume

Material of Construction

Parts	Material
Body	Ductile Iron
Cover	Ductile Iron
Stem	Stainless Steel
Disk	Ductile Iron
Spring	Stainless Steel

Dimension

Size	A (mm)	B (mm)	Weight (kg)
2″ (Tr)	185	180	6
2″	205	240	12
2.5″	229	255	15
3″	250	255	24
4″	320	325	43
5″	370	355	62
6″	415	385	85
8″	500	545	150
10″	605	595	220
12″	725	655	370
14″	733	715	385
16″	990	970	450
18″	1000	1020	550
20″	1100	1110	680

※Dimensions and weight are approximate values.

Note：

※King-Tech reserves the right to make any revisions on the valve model and size without prior notification. When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.
