Model 47-06 solenoid control valve is a valve to control open or close. It is composed of a basic valve and a solenoid switch. The powered-on pilot receives the signal to open or close the valve through the liquid inside the control air chamber of the pilot. Close speed control valve, a standard accessory, can control the close speed to avoid water hammer and vibration problems that often happen in solenoid valve.
Schematic Diagram
Accessories
| No. | Parts Name |
| 1 |
Strainer |
| 2 |
Closing speed control valve |
| 3 |
Ball valve |
| 4 |
Ball valve |
| 5 |
Pilot of solenoid control valve |
| 6 |
Ball valve |
| 7 |
Basic valve body |
|
Valve size |
50 |
65 |
80 |
100 |
125 |
|
L (mm) |
200 |
220 |
285 |
307 |
370 |
|
H (mm) |
87 | 109 | 115 | 137 |
142 |
|
Weight (kg) |
7 |
9 |
16 |
18 |
37 |
|
Valve size |
150 |
200 |
250 |
300 |
|
|
L (mm) |
390 |
500 |
605 |
650 |
|
|
H (mm) |
164 | 183 | 244 | 258 | |
|
Weight (kg) |
48 |
83 |
120 |
140 |
Notice：
※When installing the valve, strongly request to leave enough space for maintenance. It is necessary to install the filter at the front section of the valve to avoid foreign materials to block the valve and affect the operation of the valve.
※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.
※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.
Size：DN50~DN300 to flange
Flange：10K、16K、PN16、150LB
Temp. range：0℃~100℃，water
Working pressure over 0.7 bar
※Any size over DN350 or for very low pressure can be made to order.
Material
Body：Iron casting / Stainless steel
Accessory：Brass / Stainless steel
Fastener：Carbon steel / Stainless steel
Diaphragm：NBR / EPDM
Pilot Specification
Voltage Range：AC 110v/220v 50/60 Hz；DC 12v/24v
Other specification can be specified when ordering
Material：Brass/Stainless steel
When Ordering, Please Specify
1、Valve model number
2、Valve size
3、Pressure range
4、Connection type
5、Other optional parts
6、Working pressure

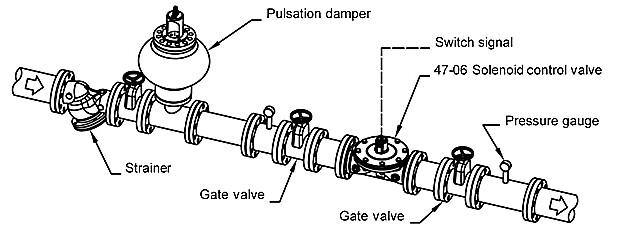

Typical Application
