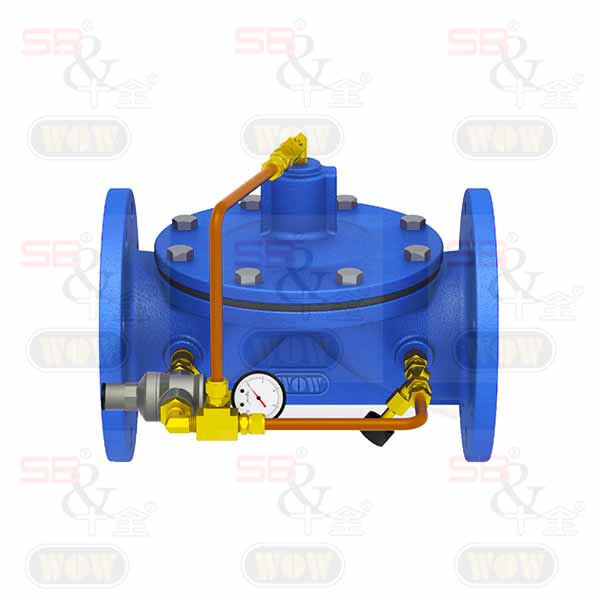

Type 47 Pressure Reducing Valve

Model 47-02 pressure reducing valve can automatically reduce the inlet high pressure to the stable outlet low pressure in spite of the velocity of flow or the pressure variation. It is hydraulic pressure controlled by using a pilot controlled pressure adjustor to maintain the outlet pressure in a preset range. When the outlet pressure is over the preset range of the pressure reducing valve, the main valve and pilot will close to form a tight sealing.


Schematic Diagram





Accessories



   No. Parts Name
    1
Strainer
    2
Needle valve / Ball valve
    3
Ball valve
    4
Ball valve
     5
Pilot of pressure reducing
    6
Ball valve
     7
Basic valve body

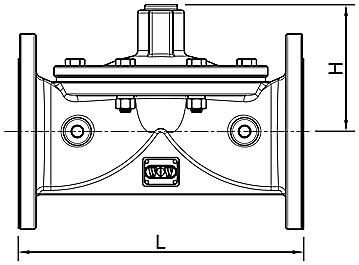

Dimension




Valve size
50
65
80
100
125
L (mm)
200
220
285
307
370
H (mm)
87 109 115 137 142
Weight(kg)
7
9
16
18
37

Valve size
150
200
250
300

L (mm)
390
500
605
650

H (mm)
164 183 244 258
Weight(kg)
48
83
120
140





Notice:
※When installing the valve, strongly request to leave enough space for maintenance. It is necessary to install the filter at the front section of the valve to avoid foreign materials to block the valve and affect the operation of the valve. ※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.
※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.

Specification

Size:DN50~DN300 to flange
Flange:10K、16K、PN16、150LB
Temp. range:0℃~100℃,water
※Any size over DN350 can be made to order.

Material


Body:Iron casting / Stainless steel
Accessory:Brass / Stainless steel
Fastener:Carbon steel / Stainless steel
Diaphragm:NBR / EPDM


Pilot Specification


Pressure adjustment range:0.1~4 bar、3~9 bar、7~16 bar
Temp. range:0℃~100℃,water
Material:Brass / Stainless steel

When Ordering, Please Specify


1、Valve model number
2、Valve size
3、Pressure range
4、Connection type
5、Other optional parts
6、Working pressure

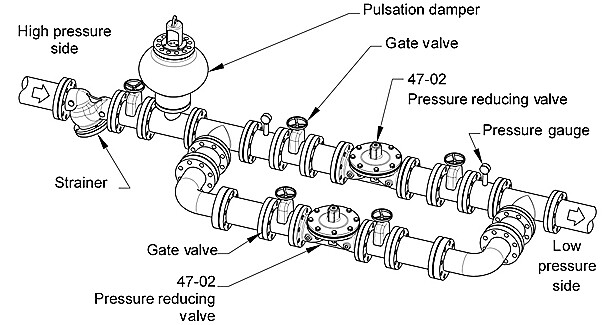

Typical Application






●Big pressure reducing range
Suggest using several parallel 47-02 pressure reducing valves to reduce the pressure step by step to reach the requirement, so that it can avoid noise, vibration and air etching problems.


●Big flow rate range needed
Suggest using two parallel 47-02 pressure reducing valves. During big flow rate, two valves can operate together; during lower flow rate, the big size PRV will automatically shut down and the small size PRV continually provide needed flow rate. When presetting the valve adjustment range, preset the pressure value of small size 0.3 bar higher than that of big size of PRV.
