Rate of Flow Control Valve Accessories
Features
Rate of Flow Control Valve Accessories

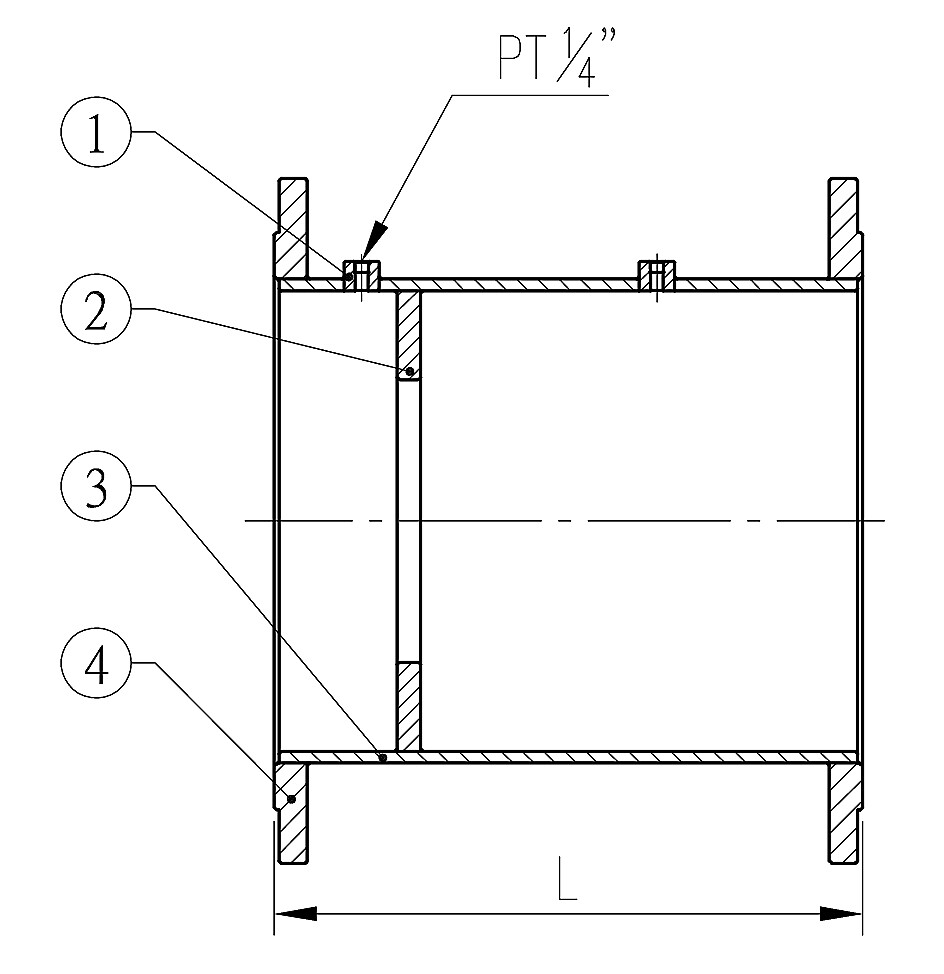

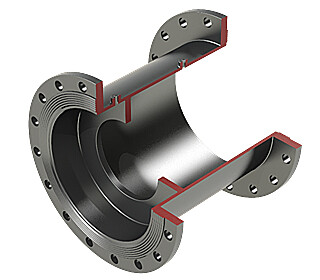

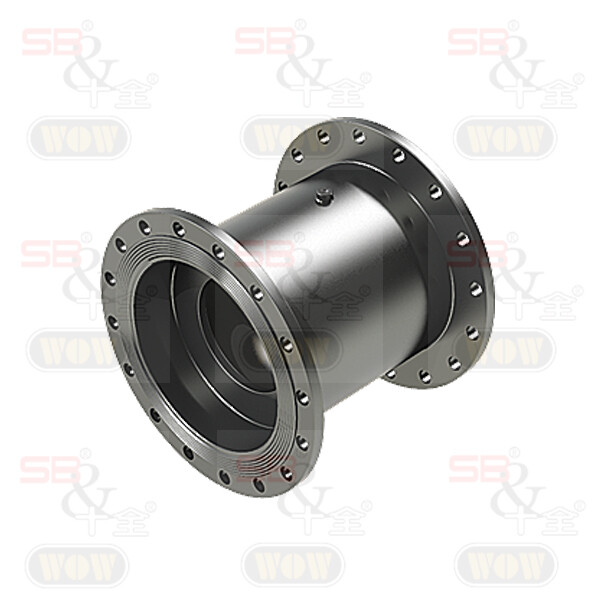

4105-OPA Orifice Plate and Assembly
|
No. |
Parts Name |
Material |
|
1 |
Pressure Metering port |
Steel / Stainless Steel |
|
2 |
Orifice Plate |
Steel / Stainless Steel |
|
3 |
Pipe |
Steel / Stainless Steel |
|
4 |
Flange |
Steel / Stainless Steel |
Dimension
|
Size |
14” |
16” |
18” |
20” |
24” |
|
L(mm) |
480 |
520 |
560 |
600 |
670 |
|
Size |
28” |
30” |
32” |
36” |
40” |
|
L(mm) |
750 |
800 |
850 |
920 |
1020 |
Note：
※When installing the valve, strongly request to leave enough space for maintenance.
※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.
※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.
Flange：10K、16K、PN16、150LB
Max working pressure：16 bar
working temperature：-10 ~ 100℃
※If need for very high working pressure, can be made to order.
