Why use a balance valve(41-05)

Hydraulic balance is necessary to avoid the following problems :

Some rooms almost never achieve the desired room temperature or are not cooled sufficiently. This problem especially arises in case of influence of other heat sources.

After changing over from low temperature to heating operation, it takes time to heat the parts in the system.

Indoor temperature changes, especially in the case of small demand, there is a greater possibility of this situation.

Consume more energy

It is unusual if the above problem happens.

Why use a balance valve(41-05)

Hydraulic balance is necessary to avoid the following problems :

Some rooms almost never achieve the desired room temperature or are not cooled sufficiently. This problem especially arises in case of influence of other heat sources.

After changing over from low temperature to heating operation, it takes time to heat the parts in the system.

Indoor temperature changes, especially in the case of small demand, there is a greater possibility of this situation.

Consume more energy

It is unusual if the above problem happens.

Hydraulic Balancing Valve

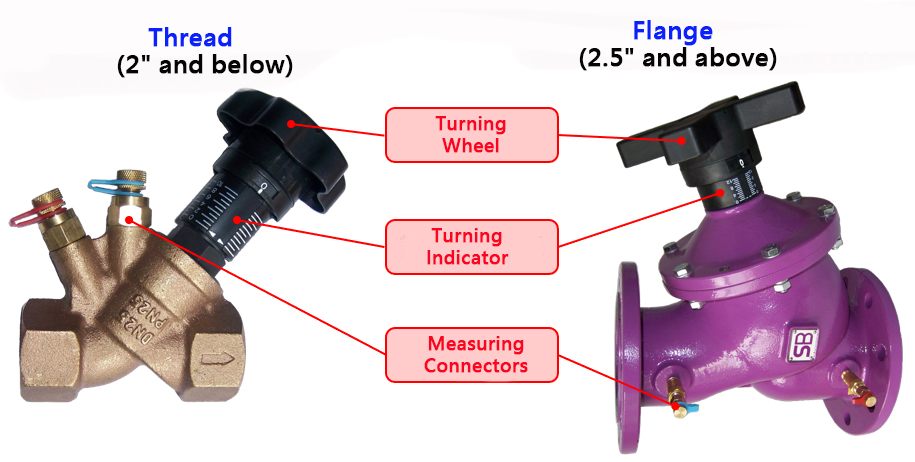

41-05 Hydraulic Balancing Valve

Distribution of flow

If the drag in some parts of the piping is unbalanced, it will lead to unbalanced distribution of flow. The disposal to this problem is to install a Balance Valve in the piping and use a specific adjusted instrument to balance the drag in the system.

The illustration shows that the pump has to produce a differential pressure at least ΔPtotal to guarantee a sufficient supply to appliance 4. This will, however, inevitably result in an excessive differential pressure at the appliances 1 to 3. Such high a differential pressure will cause overheat or under heat and a waste of energy.

The principle of Balance Valve

The principle of balance is to adjust the gap between the core and the seat, for fluid flow through the valve, the gap changes the valve’s resistance, and the flow rate will be adjusted. The balance valve equals to a local part, which resistance can be adjusted. For fluid can not be compressed, there is the flow rate formula.

Q	：Flow rate of fluid through the balance valve（m³/h）
Kv	：The balance valve’s resistance modulus, which can be adjusted
ΔP	：Different pressure before and behind the balance valve（bar）

Kv is a modulus of a balance valve. It means, if the differential pressure before and behind a balance valve is 1 bar（1.02 kg/cm2）, the flow rate through the balance valve is Kv（m3/h）. And the valve’s Kv will no changes if the open rate of the valve’s core is not changed. That is, the opening rate of a balance valve determines the valve’s Kv.

The balance valve can be used in following conditions

The balance of boiler or ice water engine group

The balance of section’s cooling or heating system

The balance between ice water engine group and cooling tower

The balance of heating (or cooling) net in buildings

Dimension

Size	Material	Connection	L(mm)	H(mm)	C(mm)
DN20	Bronze	3/4″ Thread	84	125	70
DN25		1″ Thread	96	125	70
DN32		1-1/4″ Thread	110	140	70
DN40		1-1/2″ Thread	120	145	70
DN50		2″ Thread	150	150	70
DN65	Ductile Iron	2-1/2″ Flange	229	285	210
DN80		3″ Flange	250	300	210
DN100		4″ Flange	320	330	210
DN125		5″ Flange	370	355	210
DN150		6″ Flange	415	370	210
DN200		8″ Flange	500	500	300
DN250		10″ Flange	605	540	300
DN300		12″ Flange	725	560	300
DN350		14″ Flange	733	655	300
DN400		16″ Flange	990	825	540
DN450		18″ Flange	1000	845	540
DN500		20″ Flange	1100	920	540

Note：

※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.

※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.

Hydraulic Balancing Valve Adjustment

DN20~DN500, there are four types of wheels, similar in structure and function, and all have two scales.

0~10 graduated horizontal line: represents 1 turn.

0~9 tens of numbers: represents 0.1 turn.

Tolerance Chart

Specification

Class	10K/150LB/PN10	16K/PN16	PN25
Working Pressure	10 bar	16 bar	25 bar
Temperature	-10~100 ℃	-10~100 ℃	-10~100 ℃

※The SB balancing valves have memory part, and the turns of hand wheel can be easily turned back to originally position

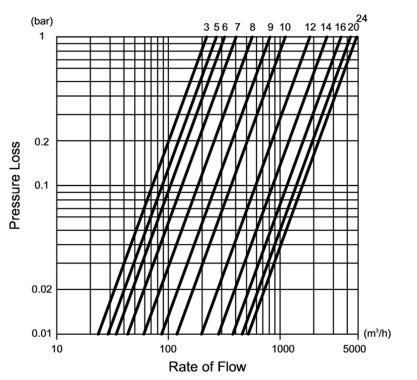

Kv Curves

DN20

DN20		DN20		DN20
Presetting	Kv	Presetting	Kv	Presetting	Kv
0.5	0.38	3.0	1.66	5.0	3.74
1.0	0.68	3.1	1.72	5.1	3.85
1.1	0.85	3.2	1.77	5.2	3.95
1.2	0.91	3.3	1.84	5.3	4.05
1.3	0.93	3.4	1.93	5.4	4.13
1.4	0.99	3.5	2.11	5.5	4.20
1.5	1.06	3.6	2.17	5.6	4.25
1.6	1.10	3.7	2.29	5.7	4.31
1.7	1.15	3.8	2.39	5.8	4.40
1.8	1.17	3.9	2.56	5.9	4.46
1.9	1.20	4.0	2.67	6.0	4.54
2.0	1.20	4.1	2.77	6.1	4.61
2.1	1.22	4.2	2.85	6.2	4.68
2.2	1.25	4.3	2.94	6.3	4.80
2.3	1.29	4.4	3.12	6.4	4.89
2.4	1.33	4.5	3.18	6.5	4.97
2.5	1.36	4.6	3.25	6.6	5.04
2.6	1.44	4.7	3.41	6.7	5.11
2.7	1.53	4.8	3.52	6.8	5.22
2.8	1.56	4.9	3.63	6.9	5.31
2.9	1.60			7.0	5.37

DN25

DN25		DN25		DN25
Presetting	Kv	Presetting	Kv	Presetting	Kv
0.5	1.10	3.0	3.80	5.0	6.97
1.0	1.83	3.1	3.93	5.1	7.06
1.1	2.00	3.2	4.03	5.2	7.18
1.2	2.18	3.3	4.18	5.3	7.31
1.3	2.31	3.4	4.31	5.4	7.46
1.4	2.37	3.5	4.57	5.5	7.57
1.5	2.53	3.6	4.68	5.6	7.67
1.6	2.59	3.7	4.81	5.7	7.76
1.7	2.66	3.8	4.94	5.8	7.88
1.8	2.74	3.9	5.19	5.9	7.97
1.9	2.82	4.0	5.34	6.0	8.06
2.0	2.91	4.1	5.49	6.1	8.23
2.1	2.98	4.2	5.63	6.2	8.34
2.2	3.06	4.3	5.80	6.3	8.43
2.3	3.16	4.4	6.01	6.4	8.55
2.4	3.26	4.5	6.22	6.5	8.62
2.5	3.34	4.6	6.37	6.6	8.68
2.6	3.43	4.7	6.52	6.7	8.73
2.7	3.52	4.8	6.63	6.8	8.86
2.8	3.62	4.9	6.75	6.9	8.95
2.9	3.71		6.97	7.0	9.11

DN32

DN32		DN32		DN32
Presetting	Kv	Presetting	Kv	Presetting	Kv
0.5	1.20	4.0	8.00	7.1	12.22
1.0	2.49	4.1	8.14	7.2	12.35
1.1	2.52	4.2	8.27	7.3	12.51
1.2	2.69	4.3	8.40	7.4	12.65
1.3	2.92	4.4	8.51	7.5	12.81
1.4	3.19	4.5	8.61	7.6	13.02
1.5	3.47	4.6	8.80	7.7	13.10
1.6	3.59	4.7	8.92	7.8	13.15
1.7	3.71	4.8	9.04	7.9	13.21
1.8	3.84	4.9	9.16	8.0	13.29
1.9	4.02	5.0	9.27	8.1	13.36
2.0	4.23	5.1	9.61	8.2	13.43
2.1	4.43	5.2	9.67	8.3	13.49
2.2	4.61	5.3	9.84	8.4	13.57
2.3	4.78	5.4	9.94	8.5	13.70
2.4	4.95	5.5	10.11	8.6	13.78
2.5	5.30	5.6	10.24	8.7	13.81
2.6	5.48	5.7	10.45	8.8	13.86
2.7	5.62	5.8	10.52	8.9	13.91
2.8	5.92	5.9	10.70	9.0	13.96
2.9	6.08	6.0	11.02	9.1	14.06
3.0	6.22	6.1	10.99	9.2	14.12
3.1	6.40	6.2	11.19	9.3	14.19
3.2	6.67	6.3	11.26	9.4	14.29
3.3	6.79	6.4	11.37	9.5	14.42
3.4	6.90	6.5	11.50	9.6	14.51
3.5	7.08	6.6	11.61	9.7	14.60
3.6	7.28	6.7	11.66	9.8	14.67
3.7	7.42	6.8	11.73	9.9	14.84
3.8	7.68	6.9	11.81	10	14.94
3.9	7.84	7.0	12.04

DN40

DN40		DN40		DN40
Presetting	Kv	Presetting	Kv	Presetting	Kv
0.5	0.96	4.0	11.39	7.1	17.02
1.0	2.38	4.1	11.53	7.2	17.10
1.1	2.67	4.2	11.59	7.3	17.24
1.2	3.02	4.3	11.69	7.4	17.28
1.3	3.29	4.4	11.77	7.5	17.42
1.4	3.59	4.5	12.04	7.6	17.51
1.5	3.86	4.6	12.29	7.7	17.66
1.6	4.10	4.7	12.56	7.8	17.76
1.7	4.48	4.8	12.89	7.9	17.96
1.8	4.81	4.9	13.26	8.0	18.03
1.9	5.18	5.0	13.44	8.1	18.21
2.0	5.29	5.1	13.74	8.2	18.31
2.1	5.47	5.2	13.92	8.3	18.40
2.2	5.68	5.3	14.16	8.4	18.59
2.3	5.90	5.4	14.44	8.5	18.82
2.4	6.18	5.5	14.57	8.6	19.00
2.5	6.45	5.6	14.74	8.7	19.19
2.6	6.79	5.7	14.98	8.8	19.29
2.7	7.30	5.8	15.24	8.9	19.46
2.8	7.62	5.9	15.53	9.0	19.62
2.9	7.98	6.0	15.72	9.1	19.71
3.0	8.20	6.1	16.04	9.2	19.76
3.1	8.61	6.2	16.18	9.3	19.89
3.2	8.87	6.3	16.24	9.4	19.96
3.3	9.23	6.4	16.32	9.5	20.15
3.4	9.51	6.5	16.38	9.6	20.26
3.5	9.77	6.6	16.46	9.7	20.36
3.6	10.22	6.7	16.54	9.8	20.45
3.7	10.68	6.8	16.70	9.9	20.58
3.8	10.86	6.9	16.81	10	20.72
3.9	11.15	7.0	16.91

DN50

DN50		DN50		DN50
Presetting	Kv	Presetting	Kv	Presetting	Kv
0.5	3.10	4.0	19.82	7.1	31.95
1.0	5.61	4.1	20.46	7.2	32.10
1.1	6.01	4.2	20.97	7.3	32.28
1.2	6.32	4.3	21.48	7.4	32.63
1.3	6.74	4.4	22.12	7.5	32.43
1.4	7.13	4.5	22.56	7.6	32.75
1.5	7.51	4.6	23.00	7.7	32.97
1.6	8.01	4.7	23.68	7.8	33.19
1.7	8.46	4.8	24.24	7.9	33.46
1.8	8.93	4.9	24.82	8.0	33.54
1.9	9.42	5.0	25.67	8.1	33.73
2.0	9.81	5.1	26.41	8.2	33.57
2.1	10.28	5.2	26.56	8.3	33.88
2.2	10.52	5.3	26.71	8.4	33.95
2.3	10.92	5.4	27.05	8.5	34.08
2.4	11.39	5.5	27.42	8.6	34.35
2.5	11.80	5.6	27.80	8.7	34.59
2.6	12.20	5.7	28.24	8.8	34.65
2.7	12.78	5.8	28.52	8.9	34.87
2.8	13.31	5.9	28.90	9.0	34.93
2.9	13.72	6.0	29.03	9.1	35.07
3.0	14.35	6.1	29.32	9.2	35.19
3.1	14.83	6.2	29.53	9.3	35.35
3.2	15.25	6.3	29.69	9.4	35.43
3.3	15.76	6.4	29.90	9.5	35.66
3.4	16.16	6.5	30.03	9.6	35.68
3.5	16.71	6.6	30.27	9.7	35.71
3.6	17.23	6.7	30.53	9.8	35.77
3.7	17.85	6.8	30.77	9.9	35.82
3.8	18.43	6.9	31.00	10	35.85
3.9	19.07	7.0	31.23

DN65

DN65		DN65		DN65
Presetting	Kv	Presetting	Kv	Presetting	Kv
1.0	6.74	3.4	21.39	5.8	48.64
1.1	6.92	3.5	22.22	5.9	50.10
1.2	7.11	3.6	22.94	6.0	51.90
1.3	7.36	3.7	23.70	6.1	53.74
1.4	7.60	3.8	24.63	6.2	55.15
1.5	7.91	3.9	25.59	6.3	56.40
1.6	8.46	4.0	26.51	6.4	57.95
1.7	9.12	4.1	27.54	6.5	59.13
1.8	10.00	4.2	28.65	6.6	60.38
1.9	10.65	4.3	29.80	6.7	61.02
2.0	11.28	4.4	30.97	6.8	61.76
2.1	12.31	4.5	32.12	6.9	62.59
2.2	12.95	4.6	33.61	7.0	63.28
2.3	13.57	4.7	34.73	7.1	64.27
2.4	14.24	4.8	36.16	7.2	65.27
2.5	14.96	4.9	37.29	7.3	66.23
2.6	15.67	5.0	38.39	7.4	67.14
2.7	16.30	5.1	39.50	7.5	68.06
2.8	17.02	5.2	40.47	7.6	68.74
2.9	17.72	5.3	41.57	7.7	69.34
3.0	18.40	5.4	43.10	7.8	70.18
3.1	19.14	5.5	44.42	7.9	71.05
3.2	19.81	5.6	45.86	8.0	71.53
3.3	20.47	5.7	47.17

DN80

DN80		DN80		DN80
Presetting	Kv	Presetting	Kv	Presetting	Kv
1.0	8.86	3.4	34.49	5.8	73.75
1.1	9.15	3.5	35.68	5.9	74.85
1.2	9.83	3.6	37.06	6.0	76.08
1.3	10.85	3.7	38.47	6.1	77.38
1.4	11.87	3.8	39.94	6.2	78.57
1.5	12.86	3.9	41.47	6.3	79.45
1.6	14.08	4.0	43.06	6.4	80.46
1.7	15.32	4.1	44.91	6.5	81.60
1.8	16.49	4.2	46.37	6.6	82.69
1.9	17.64	4.3	48.08	6.7	83.73
2.0	18.72	4.4	49.80	6.8	84.59
2.1	20.22	4.5	51.46	6.9	85.47
2.2	21.34	4.6	53.14	7.0	86.37
2.3	22.43	4.7	54.94	7.1	86.95
2.4	23.58	4.8	56.70	7.2	88.03
2.5	24.66	4.9	58.51	7.3	88.90
2.6	25.75	5.0	60.34	7.4	89.79
2.7	26.81	5.1	62.09	7.5	90.58
2.8	27.85	5.2	63.80	7.6	91.25
2.9	28.94	5.3	65.64	7.7	92.21
3.0	29.92	5.4	67.54	7.8	93.35
3.1	31.02	5.5	69.09	7.9	94.24
3.2	32.25	5.6	70.62	8.0	94.84
3.3	33.33	5.7	72.25

DN100

DN100		DN100		DN100
Presetting	Kv	Presetting	Kv	Presetting	Kv
1.0	9.58	3.4	53.98	5.8	139.52
1.1	10.57	3.5	56.52	5.9	143.26
1.2	11.83	3.6	59.53	6.0	146.22
1.3	13.40	3.7	62.66	6.1	146.70
1.4	15.17	3.8	65.82	6.2	148.60
1.5	16.82	3.9	69.02	6.3	151.08
1.6	18.60	4.0	72.62	6.4	155.19
1.7	20.37	4.1	76.11	6.5	158.85
1.8	22.17	4.2	79.45	6.6	161.49
1.9	24.22	4.3	82.36	6.7	163.27
2.0	26.19	4.4	85.93	6.8	164.53
2.1	28.09	4.5	90.04	6.9	165.61
2.2	29.94	4.6	93.52	7.0	166.85
2.3	31.60	4.7	97.10	7.1	168.50
2.4	33.42	4.8	100.68	7.2	170.51
2.5	35.01	4.9	104.44	7.3	172.72
2.6	36.48	5.0	108.16	7.4	174.98
2.7	38.18	5.1	112.07	7.5	177.15
2.8	39.92	5.2	115.16	7.6	179.13
2.9	41.67	5.3	119.20	7.7	180.91
3.0	43.57	5.4	122.76	7.8	182.56
3.1	45.82	5.5	126.50	7.9	184.11
3.2	48.14	5.6	129.85	8.0	185.61
3.3	50.73	5.7	135.01

DN125

DN125		DN125		DN125
Presetting	Kv	Presetting	Kv	Presetting	Kv
1.0	22.56	3.4	99.38	5.8	216.70
1.1	25.22	3.5	104.33	5.9	220.74
1.2	27.95	3.6	109.39	6.0	225.04
1.3	31.45	3.7	114.40	6.1	229.58
1.4	34.90	3.8	119.29	6.2	234.30
1.5	37.72	3.9	124.22	6.3	239.08
1.6	40.51	4.0	129.42	6.4	243.73
1.7	43.39	4.1	135.03	6.5	248.12
1.8	46.22	4.2	140.79	6.6	252.09
1.9	48.94	4.3	146.36	6.7	255.43
2.0	51.77	4.4	151.48	6.8	258.10
2.1	54.42	4.5	156.18	6.9	260.44
2.2	57.28	4.6	160.59	7.0	262.87
2.3	60.33	4.7	164.84	7.1	265.70
2.4	62.98	4.8	169.13	7.2	268.65
2.5	63.71	4.9	173.68	7.3	271.32
2.6	70.03	5.0	178.63	7.4	273.45
2.7	71.42	5.1	183.91	7.5	275.43
2.8	75.58	5.2	189.35	7.6	277.81
2.9	77.89	5.3	194.79	7.7	281.01
3.0	81.46	5.4	200.02	7.8	284.91
3.1	85.69	5.5	204.81	7.9	289.30
3.2	90.10	5.6	209.03	8.0	293.92
3.3	94.65	5.7	212.88

DN150

DN150		DN150		DN150
Presetting	Kv	Presetting	Kv	Presetting	Kv
1.0	13.34	3.4	99.82	5.8	290.36
1.1	16.78	3.5	104.94	5.9	296.12
1.2	20.14	3.6	115.60	6.0	301.67
1.3	24.01	3.7	123.20	6.1	307.36
1.4	27.80	3.8	130.50	6.2	313.45
1.5	31.11	3.9	138.35	6.3	319.77
1.6	35.24	4.0	145.50	6.4	326.10
1.7	38.84	4.1	152.98	6.5	332.19
1.8	42.68	4.2	159.80	6.6	337.88
1.9	45.70	4.3	167.89	6.7	343.02
2.0	48.48	4.4	174.83	6.8	347.52
2.1	51.69	4.5	182.33	6.9	351.49
2.2	54.64	4.6	190.11	7.0	355.09
2.3	57.86	4.7	198.01	7.1	358.51
2.4	61.87	4.8	207.19	7.2	361.99
2.5	64.78	4.9	215.37	7.3	365.81
2.6	68.08	5.0	223.81	7.4	370.11
2.7	71.54	5.1	235.41	7.5	374.55
2.8	75.05	5.2	244.11	7.6	378.65
2.9	78.64	5.3	252.88	7.7	382.06
3.0	82.36	5.4	261.50	7.8	384.86
3.1	86.18	5.5	269.69	7.9	387.26
3.2	90.19	5.6	277.22	8.0	389.46
3.3	94.44	5.7	284.10

DN200

DN200		DN200		DN200
Presetting	Kv	Presetting	Kv	Presetting	Kv
1.0	11.78	4.7	132.71	8.4	326.24
1.1	11.84	4.8	137.92	8.5	331.13
1.2	11.93	4.9	143.24	8.6	336.43
1.3	12.30	5.0	148.63	8.7	342.05
1.4	12.74	5.1	154.12	8.8	347.86
1.5	13.15	5.2	159.63	8.9	353.71
1.6	14.33	5.3	165.17	9.0	359.46
1.7	15.92	5.4	170.67	9.1	365.00
1.8	17.92	5.5	176.10	9.2	370.37
1.9	20.31	5.6	181.47	9.3	375.63
2.0	23.08	5.7	186.80	9.4	380.86
2.1	26.24	5.8	192.21	9.5	386.12
2.2	29.70	5.9	197.78	9.6	391.48
2.3	35.24	6.0	203.59	9.7	396.93
2.4	37.38	6.1	209.68	9.8	402.44
2.5	41.48	6.2	215.94	9.9	407.97
2.6	45.68	6.3	222.18	10.0	413.53
2.7	49.89	6.4	228.27	10.1	419.08
2.8	54.01	6.5	234.03	10.2	424.56
2.9	57.97	6.6	239.34	10.3	429.92
3.0	61.66	6.7	244.25	10.4	435.11
3.1	65.03	6.8	248.86	10.5	440.05
3.2	68.21	6.9	253.28	10.6	444.72
3.3	71.34	7.0	257.60	10.7	449.20
3.4	74.56	7.1	261.91	10.8	453.56
3.5	78.03	7.2	266.29	10.9	457.92
3.6	81.86	7.3	270.82	11.0	462.36
3.7	86.00	7.4	275.55	11.1	466.97
3.8	90.37	7.5	280.58	11.2	471.68
3.9	94.88	7.6	285.93	11.3	476.45
4.0	99.45	7.7	291.48	11.4	481.22
4.1	104.01	7.8	297.08	11.5	485.92
4.2	108.58	7.9	302.55	11.6	490.51
4.3	113.19	8.0	307.75	11.7	495.00
4.4	117.88	8.1	312.58	11.8	499.41
4.5	122.69	8.2	317.14	11.9	503.77
4.6	127.64	8.3	321.64	12.0	508.11

DN250

DN250		DN250		DN250
Presetting	Kv	Presetting	Kv	Presetting	Kv
1.0	13.96	4.7	234.09	8.4	558.11
1.1	14.05	4.8	240.65	8.5	571.42
1.2	14.56	4.9	247.13	8.6	585.29
1.3	14.98	5.0	253.50	8.7	599.35
1.4	15.50	5.1	259.78	8.8	613.09
1.5	15.90	5.2	266.04	8.9	626.02
1.6	19.94	5.3	272.39	9.0	637.66
1.7	25.21	5.4	278.92	9.1	647.69
1.8	31.23	5.5	285.73	9.2	656.56
1.9	37.51	5.6	292.89	9.3	664.90
2.0	43.56	5.7	300.27	9.4	673.36
2.1	49.06	5.8	307.73	9.5	682.56
2.2	54.34	5.9	315.11	9.6	692.95
2.3	59.89	6.0	322.26	9.7	704.23
2.4	66.22	6.1	329.10	9.8	715.90
2.5	73.82	6.2	335.80	9.9	727.47
2.6	82.99	6.3	342.65	10.0	738.44
2.7	93.21	6.4	349.88	10.1	748.49
2.8	103.80	6.5	357.77	10.2	757.92
2.9	114.02	6.6	366.49	10.3	767.19
3.0	123.18	6.7	375.90	10.4	776.77
3.1	130.76	6.8	385.77	10.5	787.13
3.2	137.06	6.9	395.88	10.6	798.58
3.3	142.56	7.0	406.01	10.7	810.84
3.4	147.75	7.1	415.98	10.8	823.48
3.5	153.11	7.2	425.84	10.9	836.07
3.6	159.03	7.3	435.67	11.0	848.19
3.7	165.46	7.4	445.58	11.1	859.50
3.8	172.26	7.5	455.66	11.2	870.00
3.9	179.27	7.6	465.99	11.3	879.81
4.0	186.35	7.7	476.57	11.4	889.04
4.1	193.37	7.8	487.40	11.5	897.79
4.2	200.31	7.9	498.46	11.6	906.17
4.3	207.19	8.0	509.76	11.7	914.25
4.4	214.00	8.1	521.29	11.8	922.11
4.5	220.75	8.2	533.13	11.9	929.82
4.6	227.45	8.3	545.38	12.0	937.45

DN300

DN300		DN300
Presetting	Kv	Presetting	Kv
2	67.18	9.5	612.74
2.5	95.40	10	668.98
3	124.17	10.5	715.91
3.5	150.59	11	767.62
4	176.90	11.5	827.77
4.5	206.50	12	891.67
5	229.97	12.5	949.58
5.5	256.94	13	1007.44
6	287.48	13.5	1053.99
6.5	326.01	14	1099.25
7	369.65	14.5	1152.13
7.5	417.29	15	1194.78
8	468.33	15.5	1234.64
8.5	515.07	16	1275.89
9	560.51

DN350

DN350		DN350
Presetting	Kv	Presetting	Kv
2	125.7	9.5	850.0
2.5	174.0	10	930.0
3	212.1	10.5	1005.0
3.5	248.6	11	1081.0
4	287.3	11.5	1162.4
4.5	329.0	12	1218.2
5	369.0	12.5	1273.6
5.5	407.6	13	1341.6
6	452.0	13.5	1406.5
6.5	491.6	14	1454.1
7	540.6	14.5	1528.1
7.5	588.8	15	1589.8
8	650.0	15.5	1663.3
8.5	712.0	16	1721.1
9	780.0

DN400

DN400		DN400
Presetting	Kv	Presetting	Kv
3	232.9	12	1447.8
3.5	248.1	12.5	1560.8
4	266.9	13	1673.7
4.5	281.5	13.5	1768.1
5	303.3	14	1866.9
5.5	316.8	14.5	1980.5
6	350.7	15	2076.6
6.5	386.0	15.5	2176.4
7	423.2	16	2254.7
7.5	503.7	16.5	2347.4
8	577.8	17	2427.4
8.5	651.1	17.5	2506.1
9	753.2	18	2571.6
9.5	843.3	18.5	2652.6
10	923.4	19	2703.6
10.5	1050.5	19.5	2763.7
11	1203.3	20	2790.3
11.5	1328.0

DN450

DN450		DN450
Presetting	Kv	Presetting	Kv
3	163.5	12	1312.0
3.5	165.1	12.5	1460.0
4	168.2	13	1615.0
4.5	178.2	13.5	1728.2
5	190.1	14	1917.8
5.5	206.4	14.5	2100.7
6	228.0	15	2262.5
6.5	252.0	15.5	2451.7
7	290.5	16	2599.1
7.5	346.5	16.5	2743.4
8	408.0	17	2845.3
8.5	485.5	17.5	2981.5
9	577.2	18	3160.0
9.5	675.0	18.5	3260.0
10	788.0	19	3407.6
10.5	912.0	19.5	3490.6
11	1036.0	20	3569.3
11.5	1170.0

DN500

DN500		DN500
Presetting	Kv	Presetting	Kv
3	175.6	14	2100.0
3.5	182.5	14.5	2315.0
4	189.0	15	2505.0
4.5	205.0	15.5	2690.0
5	215.0	16	2818.0
5.5	234.0	16.5	2966.0
6	255.0	17	3100.0
6.5	280.0	17.5	3165.0
7	323.0	18	3215.0
7.5	390.0	18.5	3260.0
8	450.0	19	3312.0
8.5	550.0	19.5	3375.0
9	650.0	20	3418.0
9.5	760.0	20.5	3480.0
10	890.0	21	3545.0
10.5	1030.0	21.5	3616.0
11	1170.0	22	3680.0
11.5	1320.0	22.5	3745.0
12	1480.0	23	3790.0
12.5	1650.0	23.5	3835.0
13	1790.0	24	3885.0
13.5	1930.0

Installation Position

The Hydraulic Balancing valve should be possibly installed at the section of the straight pipe to stabilize the flow through the valve and to ensure the accurate measurement since the Valve has the function of measuring the rate of flow. Avoid installing the valve at the side of water supply, pump outlet and the position of turbulent flow.

Recommendation：

The distance between the curved pipe and the branch pipe is at least over 5D and 2D.

The distance between the pump outlet and the branch pipe is at least over 10D and 2D.

※D is the caliber of the Balancing Valve

Download

Catalog Of 41-05 Hydraulic Balancing Valve

Hydraulic Balancing Valve

Hydraulic Balancing Valve

Hydraulic Balancing Valve

選擇語言
