Type 41 Differential Pressure Sustaining Valve

Type 41 Differential Pressure Sustaining Valve

Features

  • Accurate differential pressure control

  • Reliable &excellent sealing

  • Reliable fully-liquid pressure control

  • Larger flow rate

  • Completely automatic operation

Features

  • Accurate differential pressure control

  • Reliable &excellent sealing

  • Reliable fully-liquid pressure control

  • Larger flow rate

  • Completely automatic operation

Type 41 Differential Pressure Sustaining Valve

Model 41-09 differential pressure sustaining valve is a fully automatic and liquid-pressure control valve. Using the pressure difference between two pipes controls the pressure difference not to over the acceptable range of the system during valve operation or flow rate variety. The valve will automatically open when pressure difference is increased, and will automatically close when pressure difference is decreased. So that it can maintain the pressure difference between two pipes.
If a check feature is added, and a pressure reversal occurs, the downstream pressure is admitted in the main valve cover chamber closing the valve to prevent return flow.

Schematic Diagram





Accessories



   No. Parts Name
    1

Strainer
    2

Close Speed Control
    3

Check Valve(Optional)
    4

Ball Valve
    5

Pilot
    6

Check Valve(Optional)
Dimension





Valve size

50 Tr

 50

65

80

100

125

L (mm)

 184

205

 229

250

320

370

H (mm)

 123 155 182 186 242

276

Weight (kg)

 6

11

 13

22

37

46


Valve size

150

 200

250

300

350

400

L (mm)

415

500

 605

725

733

990

H (mm)

 308 418 488 572 598

815

Weight (kg)

75

125

 217

370

380

846



Notice：

※When installing the valve, strongly request to leave enough space for maintenance. It is necessary to install the filter at the front section of the valve to avoid foreign materials to block the valve and affect the operation of the valve.

※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.

※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.

Specification

Size：DN50~DN400 to flange , DN50 to Thread

Flange：10K、16K、PN16、150LB

Temp. range：0℃~100℃，water

※Any size over DN450 can be made to order.

Material

Body：Ductile Iron / Stainless steel

Accessory：Brass / Stainless steel

Fastener & Spring：Carbon steel / Stainless steel

Diaphragm：NBR / EPDM

Stem：Stainless Steel

Pilot Specification

Adjustable pressure range：0.1~4 bar、3~9 bar

Temp. range：0℃~100℃，water

Material：Brass / Stainless steel

When Ordering, Please Specify

1、Valve model number

2、Valve size

3、Pressure range

4、Connection type

5、Other optional parts

6、Working pressure

Typical Application

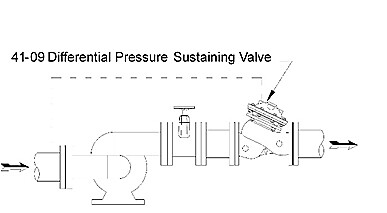

●Protection pump

441-09 differential pressure sustaining valve can maintain the pressure difference of the flow through the pump either the water supply at the upstream or the variety requirement at the downstream. It can steadily maintain and control stable pressure difference at both sides of the pump. So that it can control the flow rate to prevent the damage caused by overload or air etching when the pump is over demanded.

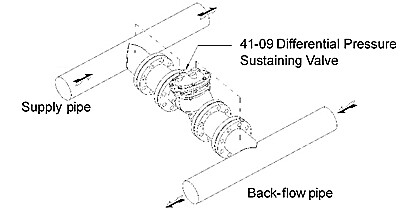

●Bypass

41-09 differential pressure sustaining valve can be used in the circular system to ensure the pressure difference between the supply pipe and the back-flow pipe. In the filter system (bypass), the pressure difference will enlarge when the filter is blocked. By using a model 41-09, the valve will open to compensate the flow rate at the after end to avoid damaging the system.
