Type 41 Pressure Reducing Valve

Type 41 Pressure Reducing Valve

 Features

  • Sensitive, accurate pressure control

  • Easy adjustment & maintenance

  • Reliable and excellent sealing

 Features

  • Sensitive, accurate pressure control

  • Easy adjustment & maintenance

  • Reliable and excellent sealing

Type 41 Pressure Reducing Valve

Model 41-02 pressure reducing valve can automatically reduce the inlet high pressure to the stable outlet low pressure in spite of the velocity of flow or the pressure variation. It is hydraulic pressure controlled by using a pilot controlled pressure adjustor to maintain the outlet pressure in a preset range. When the outlet pressure is over the preset range of the pressure reducing valve, the main valve and pilot will close to form a tight sealing.

If a check feature is added, and a pressure reversal occurs, the downstream pressure is admitted in the main valve cover chamber closing the valve to prevent return flow.


Schematic Diagram





Accessories

No. Parts Name
1
Strainer
2
Close Speed Control
3
Check Valve(Optional)
4
Ball Valve
5
Ball Valve
6
Pressure Reducing Pilot
7
Check Valve(Optional)
8
Ball Valve(Optional)

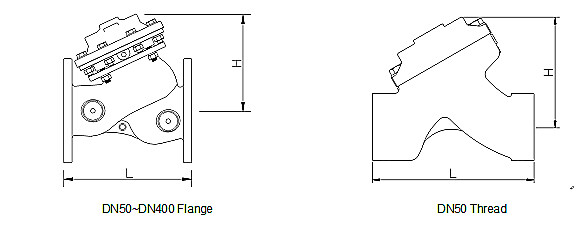

Dimension


Valve size
50 Tr
50
65
80
100
125
L (mm)
184
205
229
250
320
370
H (mm)
123 155 182 186 242 276
Weight(kg)
6
11
13
22
37
46

Valve size
150
200
250
300
350
400
L (mm)
415
500
605
725
733
990
H (mm)
308 418 488 572 598 815
Weight(kg)
75
125
217
370
380
846




Notice:

※When installing the valve, strongly request to leave enough space for maintenance. It is necessary to install the filter at the front section of the valve to avoid foreign materials to block the valve and affect the operation of the valve.
※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.
※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.

Specification

Size:DN50~DN400 to flange, DN50 to Thread

Flange:10K、16K、PN16、150LB

Temp. range:0℃~100℃,water

※Any size over DN450 can be made to order.


Material

Body:Ductile Iron / Stainless steel

Accessory:Brass / Stainless steel

Fastener & Spring:Carbon steel / Stainless steel

Diaphragm:NBR / EPDM

Stem:Stainless Steel


Pilot Specification

Pressure adjustment range:1~4 bar、3~9 bar、7~16 bar

Temp. range:0℃~100℃,water

Material:Brass / Stainless steel


When Ordering, Please Specify

1、Valve model number

2、Valve size

3、Pressure range

4、Connection type

5、Other optional parts

6、Working pressure

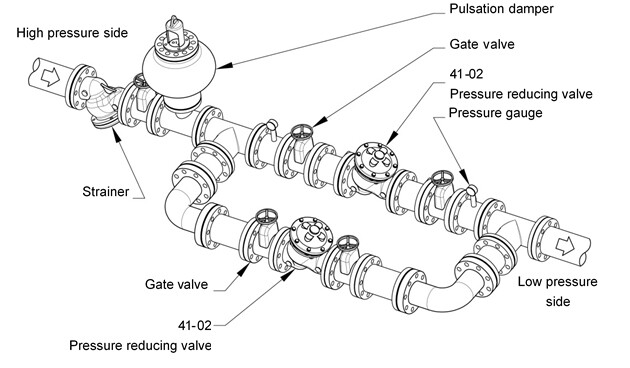

Typical Application



●Big pressure reducing range
Suggest using several parallel 41-02 pressure reducing valves to reduce the pressure step by step to reach the requirement, so that it can avoid noise, vibration and air etching problems.


●Big flow rate range needed
Suggest using two parallel 41-02 pressure reducing valves. During big flow rate, two valves can operate together; during lower flow rate, the big size PRV will automatically shut down and the small size PRV continually provide needed flow rate. When presetting the valve adjustment range, preset the pressure value of small size 0.3 bar higher than that of big size of PRV.
