Combination Air Release Valve

Combination Air Release Valve

 Features

  • It can remove a lot of air from the pipes


  • All internal parts are made of stainless steel


  • Easy maintenance without any special tools


  • When negative pressure builds up in the tube, the composite relief valve opens rapidly to draw in outside air.

 Features

  • It can remove a lot of air from the pipes


  • All internal parts are made of stainless steel


  • Easy maintenance without any special tools


  • When negative pressure builds up in the tube, the composite relief valve opens rapidly to draw in outside air.

Combination Air Release Valve

Model 80-08 The Combination Air Release Valve can exhaust huge amounts of air inside the water pipe to reduce the noise and vibration caused by the air, and to enhance the efficiency of the equipment. When there is negative pressure generated inside the pipe, the Combination Air Release Valve will quickly open to suck in the outside air to protect the pipe, so that it won’t be damaged by the negative pressure.

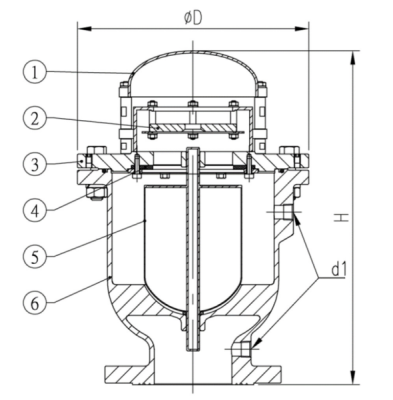

Material of Construction

No.

Parts Name

Material

1

Hood

SUS / Carbon Steel

2

Cover

SUS / Carbon Steel

3

Gasket

EPDM

4

Float

PC / SUS

5

Body

SUS / Carbon Steel



Specification


Valve Size

D (mm)

H (mm)

d1 (PT)

2″

170

250

1/2″

3″

300

435

1/2″

4″

300

435

1/2″

6″

400

590

1/2″

8″

460

705

1″


Max working pressure:10 bar

Max working temperature:100℃

※If need for very high working pressure, can be made to order.




Note:

※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.


Download

Catalog Of 80-08 Combination Air Release Valve
