Direct-activated Pressure Relief、Sustaining、Back Valve

Direct-activated Pressure Relief、Sustaining、Back Valve

Features

    • When the inlet pressure directly responds to the pressure control chamber to adjust setting pressure, the response is sensitive and adjustment can be very precise.


    • The valve’s body and cover are connected with bolts and nuts instead of thread. This kind of design brings easy and tight seal.


    • The inlet pressure can be directly read form the gauge port PT 1/8″.

Features

    • When the inlet pressure directly responds to the pressure control chamber to adjust setting pressure, the response is sensitive and adjustment can be very precise.


    • The valve’s body and cover are connected with bolts and nuts instead of thread. This kind of design brings easy and tight seal.


    • The inlet pressure can be directly read form the gauge port PT 1/8″.

Direct-activated Pressure Relief、Sustaining、Back Valve

72 Direct-activated Pressure Relief、Sustaining、Back Valve

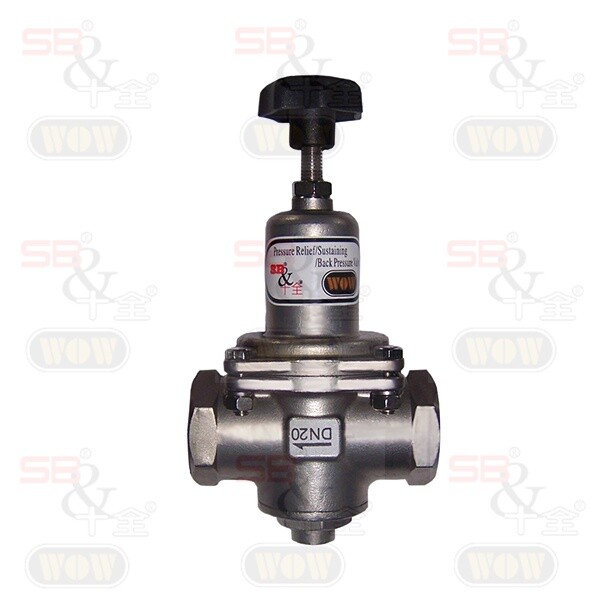

The valve is a diaphragm actuated pressure relief Valve. It opens automatically against the adjustable, preset spring loading whenever line pressure exceeds the setting of the spring. It is held in a normally closed position by the force of the compression spring. Effective diaphragm area is large in relation to the seat area and the action therefore is positive, precise, and dependable.

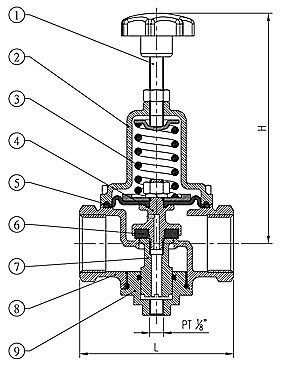

Dimension

Size

1/2″

3/4″

1″

1-1/4″

1-1/2″

2″

L (mm)

78

88

88

122

122

160

H (mm)

130

140

140

200

200

220



Note:

※When installing the valve, strongly request to leave enough space for maintenance.

※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.

※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.





Material of Construction

No.

Parts Name

Material

1

Adjusting screw

SUS

2

Cover

SUS

3

Spring

Carbon steel / SUS

4

Stem

SUS

5

Diaphragm

NBR / EPDM

6

Gasket

NBR / EPDM

7

Disk

SUS

8

Body

SUS

9

Bottom cover

SUS


※The material of stainless steel is 304 or 316


Specification


Size:1/2″~2″

Type:Direct acting diaphragm

Primarily controlled by:Upstream hydraulic pressure

Purpose:To release inlet exceeding pressure over the maximum level preset

Connections:Threaded end

Material:SUS304 / SUS316

Media available:Normal temperature water, Air, Gas

Max working temp.:100℃

Max working pressure:17.2 bar (250 psi)

Pressure adjustment range:0.5~6 bar (7~87 psi)、5~10 bar (72~145 psi)

※Additional ranges are available depending on your requirement.


When Ordering, Please Specify

1. Valve model number

2. Valve size

3. Working pressure

4. Adjustment range







Download

Catalog Of 72 Direct-activated Pressure Relief、Sustaining、Back Valve
