Micro-bubble Separator

特點

- Basket Type
- Using gravity theory, flow water pass through bin, automatically separate air, water and impurity
- Air ejected from air release valves
- Impurity will be ejected by pressure of water
- Must be installed at horizontal position

特點

- Basket Type
- Using gravity theory, flow water pass through bin, automatically separate air, water and impurity
- Air ejected from air release valves
- Impurity will be ejected by pressure of water
- Must be installed at horizontal position

Micro-bubble Separator

54 Micro-bubble Separator

Using gravity theory, flow water pass through bin, automatically separate air, water and impurity. Air ejected from air release valves, Open bottom of valve, impurity will be ejected by pressure of water, Must be installed at horizontal position.

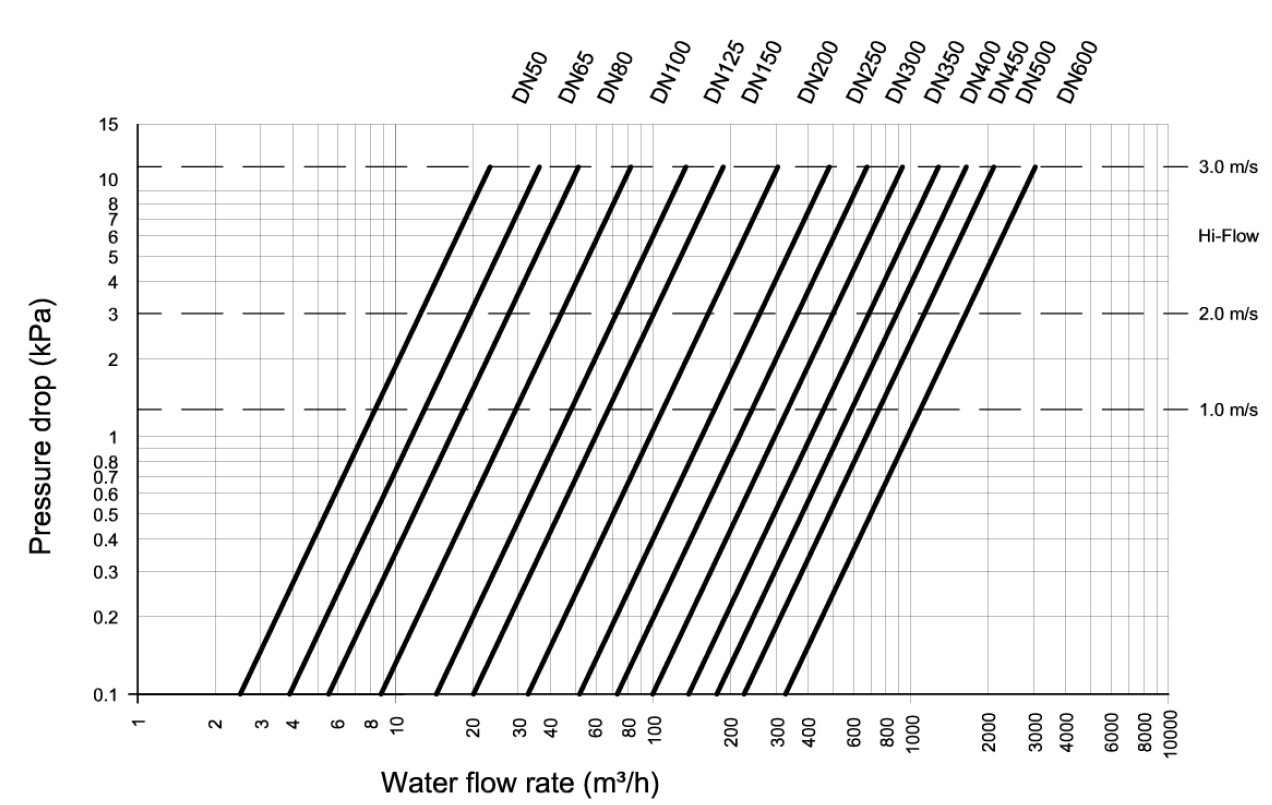

Captures and discharges normal or micro bubbles from the pipeline automatically under extremely small pressure loss.

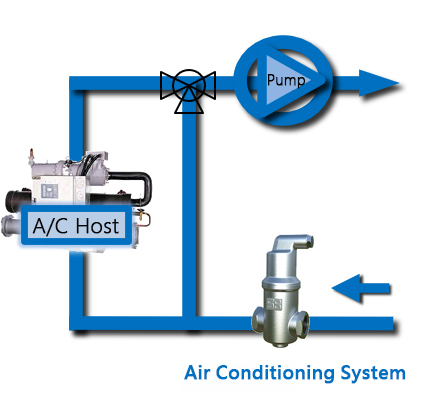

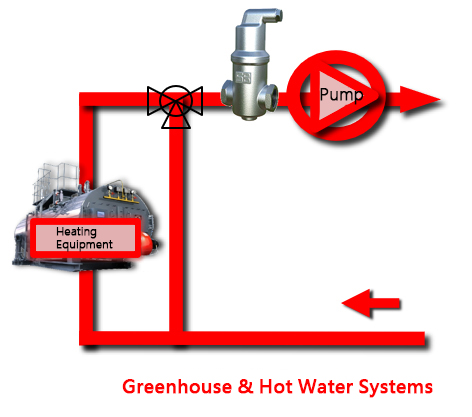

It can prevent cavitation of pump and control valve, reduce pipeline noise, and prevent micro bubbles from affecting heat conduction or heat exchange efficiency.

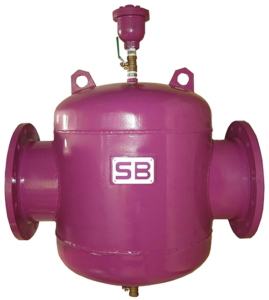

Steel-Flange

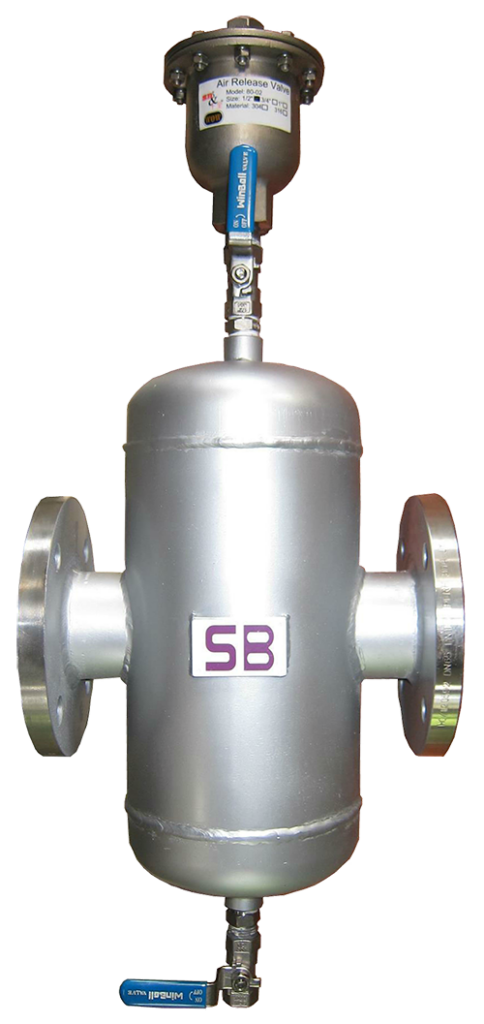

Stainless steel-Flange

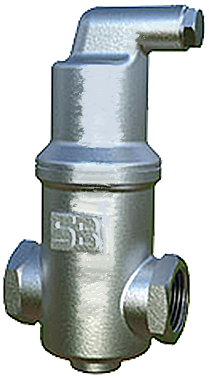

Stainless steel-Thread

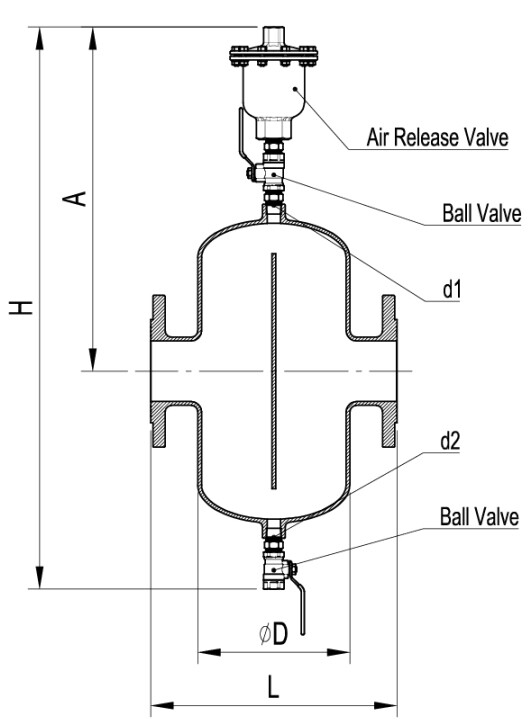

Dimension

Size	A	H	D	L	d1	d2
2″	435	710	170	290	15	15
2.5″	435	710	170	290	15	15
3″	450	740	200	325	15	15
4″	470	780	260	435	15	15
5″	520	890	275	490	15	15
6″	550	930	320	540	15	15
8″	560	950	420	650	15	15
10″	590	1020	520	760	20	25
12″	675	1200	620	850	20	25
14″	675	1200	620	850	20	25
16″	900	1650	800	1200	20	25
18″	950	1750	1000	1500	20	25
20″	950	1750	1000	1500	20	25
24″	1200	2250	1200	1700	20	25

※Dimensions are approximate values.

Note：

King-Tech reserves the right to make any revisions on the valve model and size without prior notification. When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.
