Centrifugal Separation of Gases from Piping Liquids
Automatic emission of collected gases
Drainage of impurities collected in the system
Features
Centrifugal Separation of Gases from Piping Liquids
Automatic emission of collected gases
Drainage of impurities collected in the system

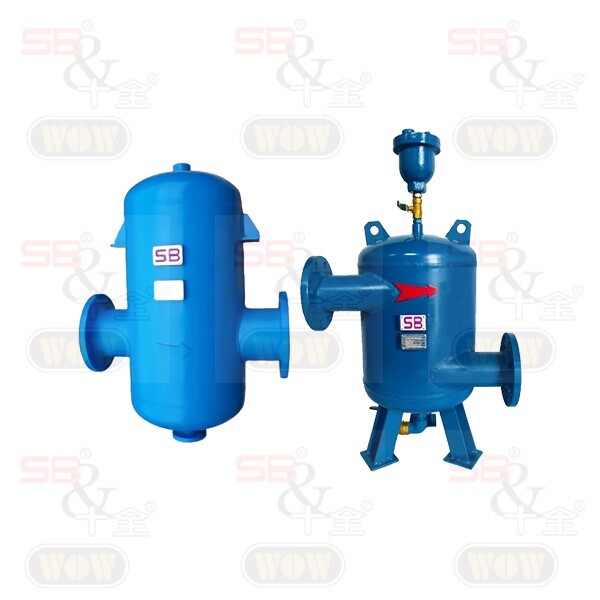

53 Vortex Air Separator
Separate the air from the liquid in the pipeline by the way of centrifugal force. On the top, an Automatically Air Relief Valve is attached to automatically discharge all air collected. At the bottom, a Relief Valve is installed to discharge the foreign substances collected from the inside of the system.

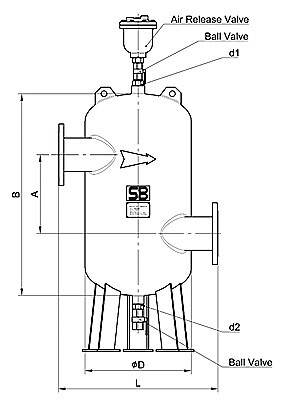

Dimension
|
Size |
A |
B |
D |
L |
d1 |
d2 |
|
2″ |
200 |
490 |
275 |
415 |
15 |
25 |
|
2.5″ |
200 |
490 |
275 |
415 |
15 |
25 |
|
3″ |
200 |
490 |
325 |
495 |
15 |
25 |
|
4″ |
270 |
690 |
355 |
545 |
15 |
25 |
|
5″ |
270 |
690 |
355 |
545 |
15 |
25 |
|
6″ |
365 |
1000 |
510 |
700 |
15 |
25 |
|
8″ |
365 |
1000 |
510 |
700 |
20 |
25 |
|
10″ |
475 |
1400 |
765 |
1025 |
20 |
25 |
|
12″ |
475 |
1400 |
765 |
1025 |
20 |
25 |
|
14″ |
790 |
2000 |
915 |
1160 |
20 |
25 |
|
16″ |
900 |
2400 |
1070 |
1300 |
20 |
25 |
|
18″ |
1025 |
2600 |
1220 |
1540 |
20 |
25 |
|
20″ |
1125 |
2875 |
1350 |
1650 |
20 |
25 |
|
24″ |
1190 |
3250 |
1650 |
1950 |
20 |
25 |

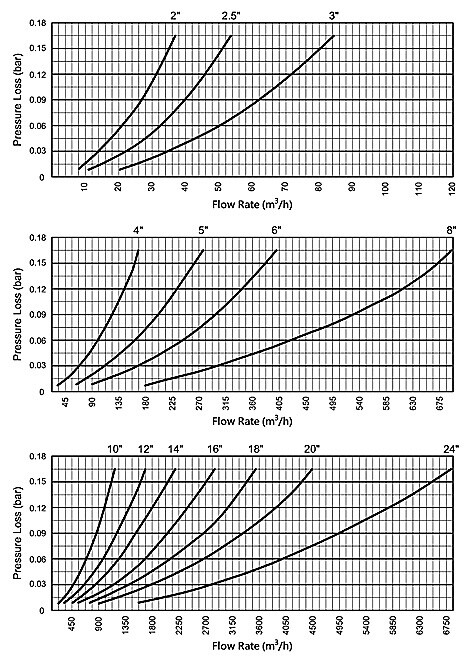

Note：
※King-Tech reserves the right to make any revisions on the valve model and size without prior notification. When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.
|
Class |
10K / 150LB / PN10 |
16K / PN16 |
|
Working Pressure |
10 bar |
16 bar |
|
Working Temperature |
-10~100 ℃ |
-10~100 ℃ |
