Standpipe Rainwater Harvesting Filter

Standpipe Rainwater Harvesting Filter

Features

    • No energy required, Self-keep clean


    • Easy to install, no need of consumptive material


    • High efficiency


    • Installation in downpipe, Outlet size : DN 50 (2”)


    • Suitable for Roof Areas under 200 m2

Features

    • No energy required, Self-keep clean


    • Easy to install, no need of consumptive material


    • High efficiency


    • Installation in downpipe, Outlet size : DN 50 (2”)


    • Suitable for Roof Areas under 200 m2

Standpipe Rainwater Harvesting Filter

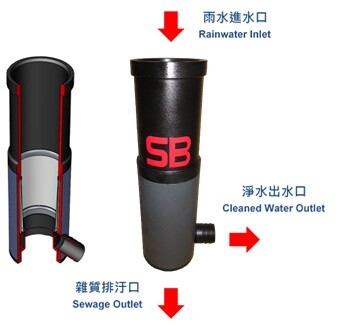

Type 5109 Standpipe Rainwater Harvesting Filter for installation in the downpipes with underground connection to water tank. When rainwater falls into rainwater harvesting filter, it is designed to while rainwater through stainless filter, cleaned rainwater will then be flushed out. Over 90% of cleaned rainwater will then be flushed out and could be collected effectively. Cleaned rainwater is available for flushing toilets, washing cars, watering plants or any other purpose without direct contact with human body. The remaining with leaves, branches, stones, garbage and other impurities will be filtered out to the sewage outlet and be discharged.



Specification

No.

Parts Name

Material

1

Inlet Sleeve

POM

2

Outlet Pipe

POM

3

Filter

SUS

4

Body

PVC

5

Bottom Cover

POM

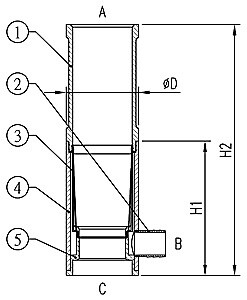

Size

D

A
(DN)

B

(DN)

C

(DN)

H1

H2

4”

140

100

50

100

260

485

Filter mesh size:0.335 mm (basic version)



Note:

※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.

※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.

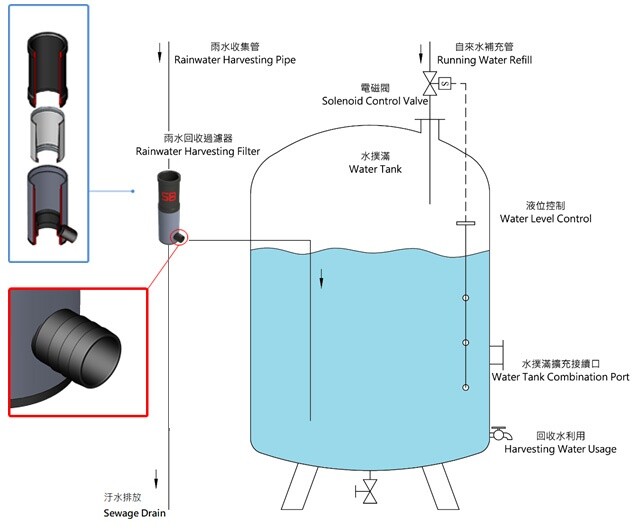

Application

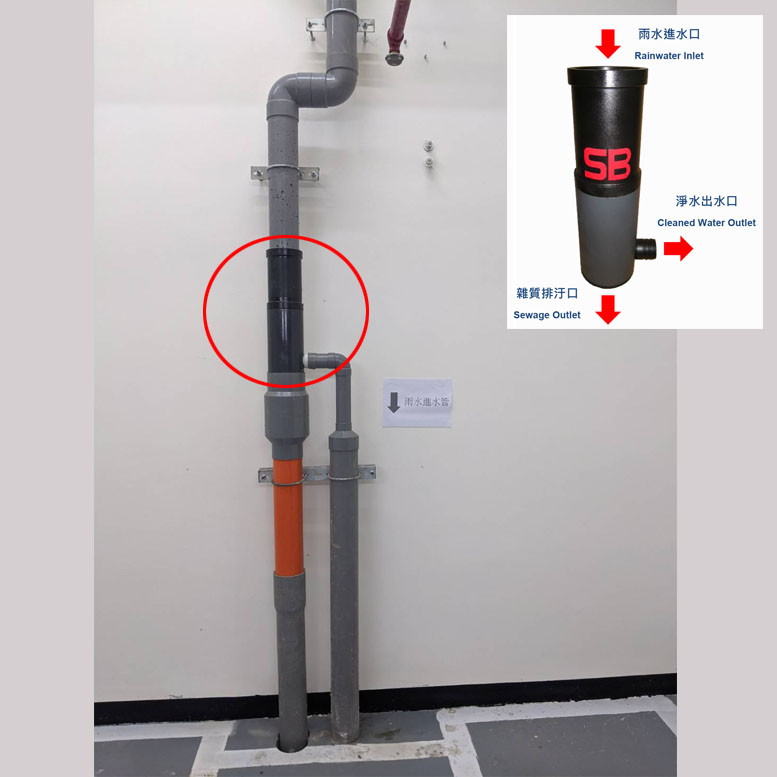

Installation Performance

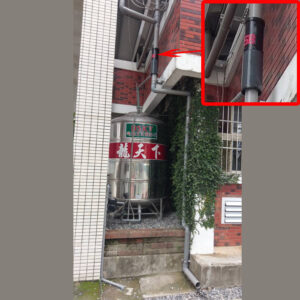

School Use



School Use
