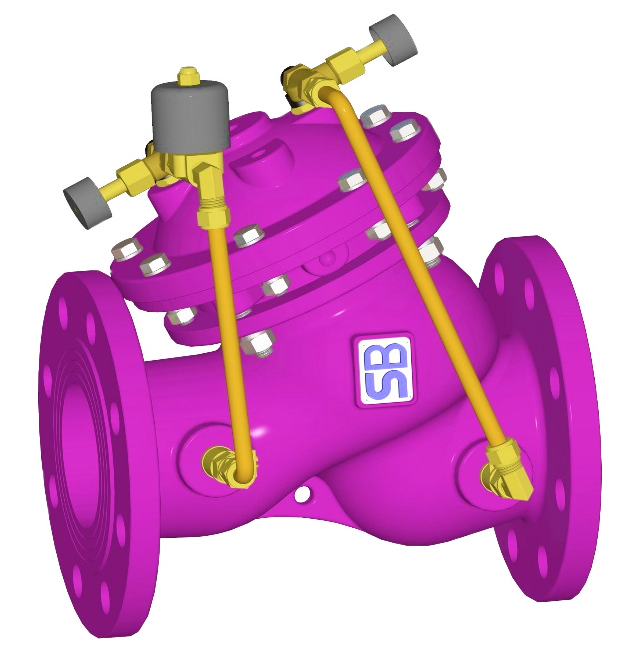

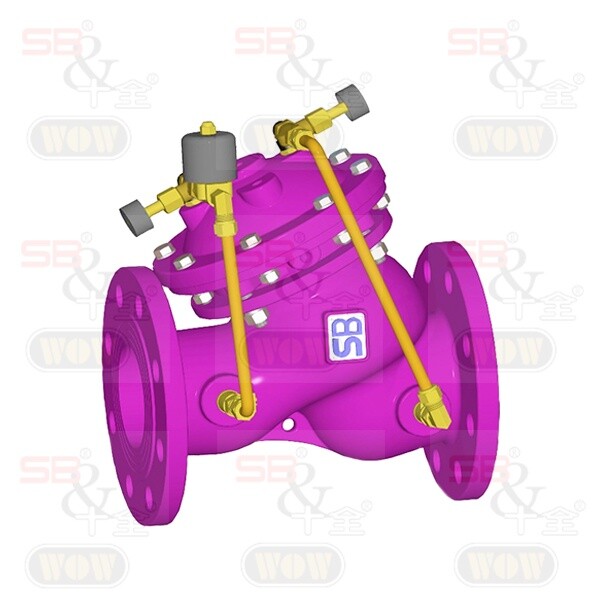

Model 41-06 solenoid control valve is a valve to control open or close. It is composed of a basic valve and a solenoid switch. The powered-on pilot receives the signal to open or close the valve through the liquid inside the control air chamber of the pilot.

Close speed control valve, a standard accessory, can control the close speed to avoid water hammer and vibration problems that often happen in solenoid valve.

If a check feature is added, and a pressure reversal occurs, the downstream pressure is admitted in the main valve cover chamber closing the valve to prevent return flow.

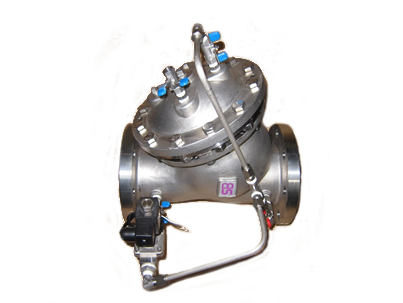

• Stainless steel

• Ductile Iron

Schematic Diagram

  Accessories

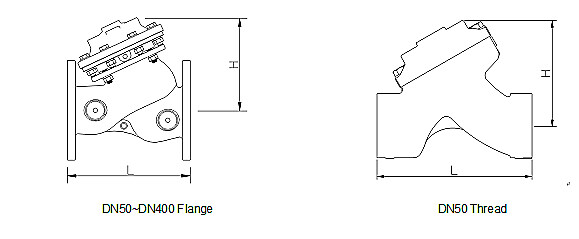

Dimension





Valve size	50 Tr	50	65	80	100	125
L (mm)	184	205	229	250	320	370
H (mm)	123	155	182	186	242	276
Weight (kg)	6	11	13	22	37	46
Valve size	150	200	250	300	350	400
L (mm)	415	500	605	725	733	990
H (mm)	308	418	488	572	598	815
Weight (kg)	75	125	217	370	380	846





Notice：



※When installing the valve, strongly request to leave enough space for maintenance. It is necessary to install the filter at the front section of the valve to avoid foreign materials to block the valve and affect the operation of the valve.



※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.



※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.

---

Specification



Size：DN50~DN400 to flange , DN50 to Thread



Flange：10K、16K、PN16、150LB



Temp. range：0℃~100℃，water



※Any size over DN450 can be made to order.

---

Material



Body：Ductile Iron / Stainless steel



Accessory：Brass / Stainless steel



Fastener & Spring：Carbon steel / Stainless steel



Diaphragm：NBR / EPDM



Stem：Stainless Steel

---

Pilot Specification



Voltage Range：AC 110v/220v 50/60 Hz；DC 12v/24v



Other specification can be specified when ordering



Material：Brass/Stainless steel

---

When Ordering, Please Specify



1、Valve model number



2、Valve size



3、Pressure range



4、Connection type



5、Other optional parts



6、Working pressure



---

Typical Application

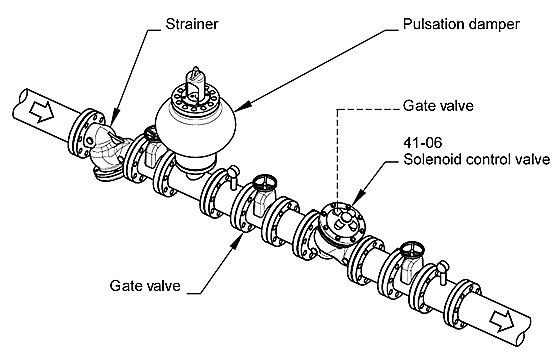

Model 41-06 solenoid control valve is frequently used in industry, such as mix, wash, stir, etc. It can use the direct control signal or a sensor to produce a control signal to control the on/off of the valve. It can also use a Solenoid Control Valve to control the liquid level. Through the liquid level sensor installed inside the tank, it can produce an on/off signal to control the open/close of the valve to reach the purpose of liquid level control.



---





---

Download

Catalog Of 41-06 Solenoid Control Valve
