Model 41-04 Non-Slam Check Valve is a hydraulically operated diaphragm valve with open and close velocity control. When the pressure at the inlet exceeds the opening pressure, the valve will open gradually and slowly to prevent the surge. When a pressure reversal occurs, liquid will enter the air chamber of the valve to close the valve and form a tight seal.
This valve is especially suitable to use where a positive shutoff is required. The rubber disc assures tight sealing. The simple valve design insures reliable.

Schematic Diagram

Accessories

Dimension





Valve size	50 Tr	50	65	80	100	125
L (mm)	184	205	229	250	320	370
H (mm)	123	155	182	186	242	276
Weight (kg)	6	11	13	22	37	46
Valve size	150	200	250	300	350	400
L (mm)	415	500	605	725	733	990
H (mm)	308	418	488	572	598	815
Weight (kg)	75	125	217	370	380	846



Notice：

※When installing the valve, strongly request to leave enough space for maintenance. It is necessary to install the filter at the front section of the valve to avoid foreign materials to block the valve and affect the operation of the valve.

※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.

※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.

---

Specification

Size：DN50~DN400 to flange , DN50 to Thread

Flange：10K、16K、PN16、150LB

Temp. range：0℃~100℃，water

※Any size over DN450 can be made to order.

---

Material

Body：Ductile Iron / Stainless steel

Accessory：Brass / Stainless steel

Fastener & Spring：Carbon steel / Stainless steel

Diaphragm：NBR / EPDM

Stem：Stainless Steel

---

Pilot Specification

Material：Brass / Stainless steel

Sealing：Teflon

Temp. range：0℃~100℃

---

When Ordering, Please Specify

1、Valve model number

2、Valve size

3、Pressure range

4、Connection type

5、Other optional parts

6、Working pressure

---

Typical Application

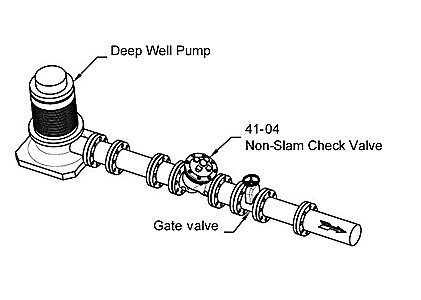

●Deep Well Pump

Any well designed pumping system should install The Model 41-04 Non-Slam Check Valve. It is used to prevent the destructive flow reversal.

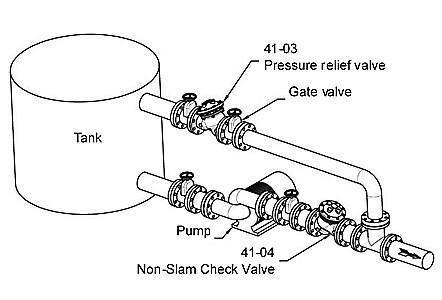

●Booster Pump



Model 41-04 Non-Slam Check Valve is installed at the discharge of booster pumps to prevent return flow into the tank when pump is off. Pressure relief valve as shown can effectively prevent surge when pump stops.





---





---
