Features
Valve uses line pressure for operation
Opening and closing rates adjusted separately
Solenoid control can be operated manually
Features
Valve uses line pressure for operation
Opening and closing rates adjusted separately
Solenoid control can be operated manually

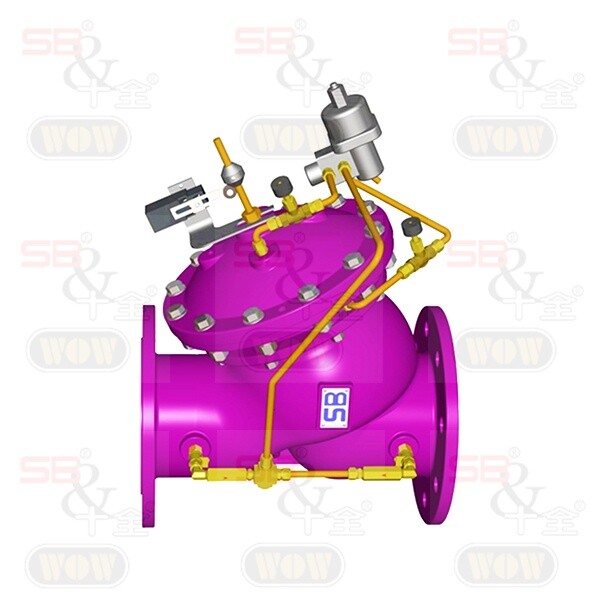

Model 41-07B Booster Pump Control Valve is a pilot-operated valve designed for installation on the discharge of booster pumps to eliminate pipeline surges causes by the starting and stopping of the pump.
The pump starts against a closed valve. When the pump is started, the solenoid control is energized and the valve begins to open slowly, gradually increasing line pressure to full pumping head.
When the pump is signaled to shut-off, the solenoid control is deenergized and the valve begins to close slowly, gradually reducing flow while the pump continues to run. When the valve is closed, a limit switch assembly, which serves as an electrical interlock between the valve and the pump, releases the pump starter and the pump stops.
Schematic Diagram
Accessories
| No. | Parts Name |
| 1、10 |
Check Valve |
| 2、9 |
Ball Valve |
| 3、8 |
Strainer |
| 4 |
Open Speed Control |
| 5 |
Solenoid Control |
| 6 |
Close Speed Control |
| 7 |
Limit Switch |
|
Valve size |
50 Tr |
50 |
65 |
80 |
100 |
125 |
|
L (mm) |
184 |
205 |
229 |
250 |
320 |
370 |
|
H (mm) |
123 | 155 | 182 | 186 | 242 |
276 |
|
Weight (kg) |
6 |
11 |
13 |
22 |
37 |
46 |
|
Valve size |
150 |
200 |
250 |
300 |
350 |
400 |
|
L (mm) |
415 |
500 |
605 |
725 |
733 |
990 |
|
H (mm) |
308 | 418 | 488 | 572 | 598 |
815 |
|
Weight (kg) |
75 |
125 |
217 |
370 |
380 |
846 |
Notice：
※When installing the valve, strongly request to leave enough space for maintenance. It is necessary to install the filter at the front section of the valve to avoid foreign materials to block the valve and affect the operation of the valve.
※King-Tech reserves the right to make any revisions on the valve model and size without prior notification.
※When making any design drawing, installation drawing or construction drawing, please do get our approved CAD with our signature, or we will not be responsible for any mistake.
Size：DN50~DN400 to flange, DN50 to Thread
Flange：10K、16K、PN16、150LB
Temp. range：0℃~100℃，water
※Any size over DN450 can be made to order.
Material
Body：Ductile Iron / Stainless steel
Accessory：Brass / Stainless steel
Fastener & Spring：Carbon steel / Stainless steel
Diaphragm：NBR / EPDM
Stem：Stainless Steel
When Ordering, Please Specify
1、Valve model number
2、Valve size
3、Pressure range
4、Voltage
5、Connection type
6、Other optional parts
7、Working pressure

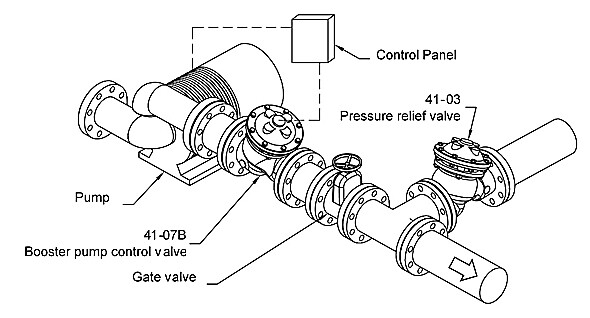

Typical Application
Install 41-07B Booster Pump Control Valve as show. Flexible conduit should be used for electrical connection to the pilot and the limit switch.
